Spreader and Lifting Beam Kit (IBC & Pallet) – 2000KG

$1,501.50 plus GST

See specifications below.

In stock

SKU: CHA-21-200 Categories: ,

Description

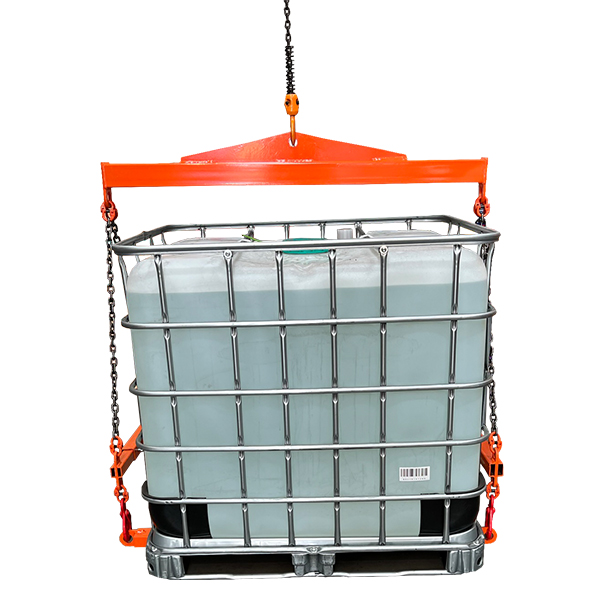

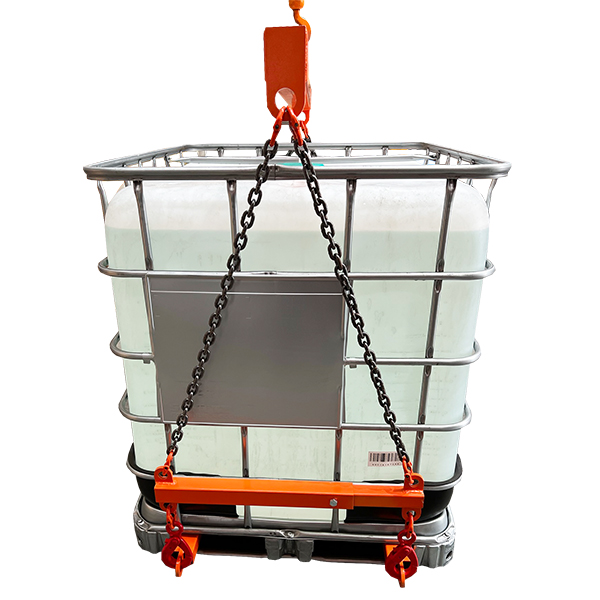

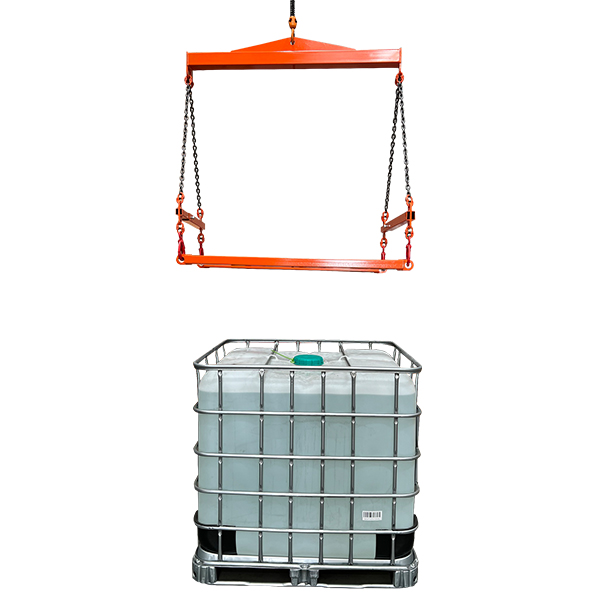

The IBC & Pallet Spreader and Lifting Beam Kit has been designed to safely lift any IBC container or pallet by overhead crane.

Supplied with the following:

  • Four lifting chain assembly
  • Two lower adjustable spreader beams
  • Four 2T latch lock hooks
  • Two lifting forks.

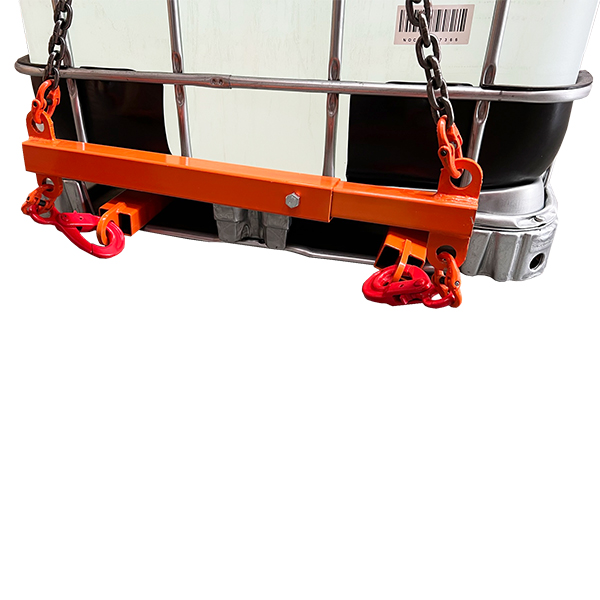

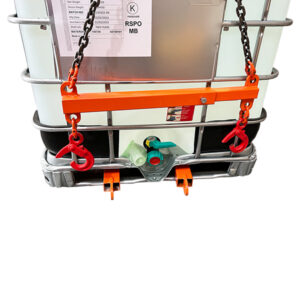

The Lower spreader beams are adjustable to 3 positions to suit varying pallet sizes by moving the extendable arm in position.  The extendable arm is locked in position via a high tensile bolt.

FEATURES:

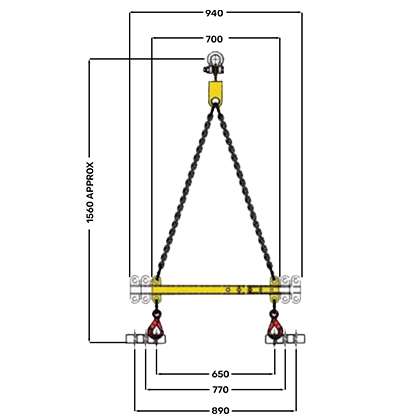

  • Adjustable widths (mm): 650, 770 and 890
  • Enamel painted finish

SPECIFICATIONS:

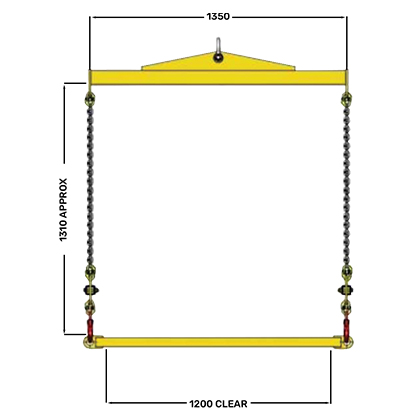

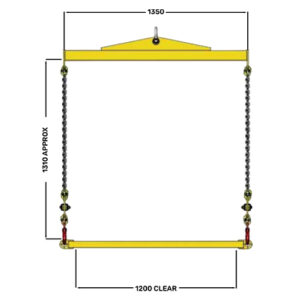

Product Code WLL (kg) Load Centre (mm)  Unit Length (mm) Unit Weight (kg)
CHA-21-200 2000 675 1200 55



Download the Product Spec below
