Adjustable Pallet Hook

Original price was: $2,650.17.Current price is: $2,332.15. plus GST

See specifications below.

In stock

SKU: CHA-21-100 Categories: , Tag:

Description

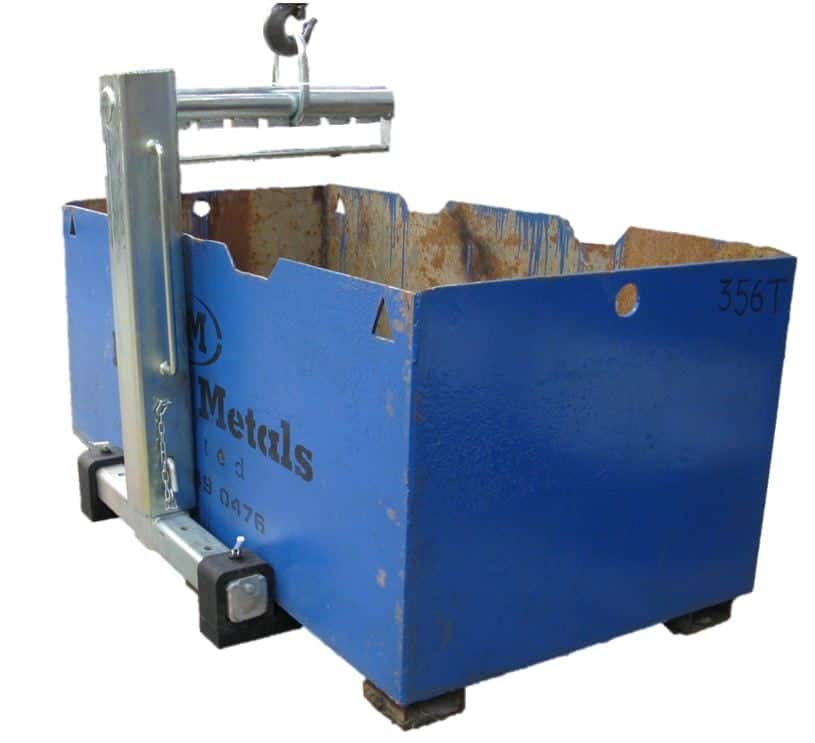

This adjustable pallet hook is a versatile unit which allows pallets to be picked-up and moved using an overhead truck mounted crane. These units have 7 hook positions for handling varying weight/size pallets. It features adjustable body height and fork tine width positioning.

Load balancing is carried out by positioning the lifting ring to suit the centre of gravity of the load. Comes in a zinc finish with an instruction manual and certification included.

Specifications:

  • Working Load Limit 2,200kg
  • Load centre 600 mm
  • Unit weight 215kg
  • Fork width adjustments 315 595 875mm (centres)
  • Height adjustable 1063-1900mm (load clearance)
  • Hot dip galvanized finish.



Product Code WLL (kg) Unit Weight (kg) Load Centre (mm) Fork Tine Length (mm) Fork width spread
CHA-21-100 2200 215 600 1055 1010
