Three Phase, Dual Speed (Nitchi)

Full Screen

Three Phase, Dual Speed (Nitchi)


See specifications below.

Clear
SKU: NECT4 Categories: , , , ,

Description

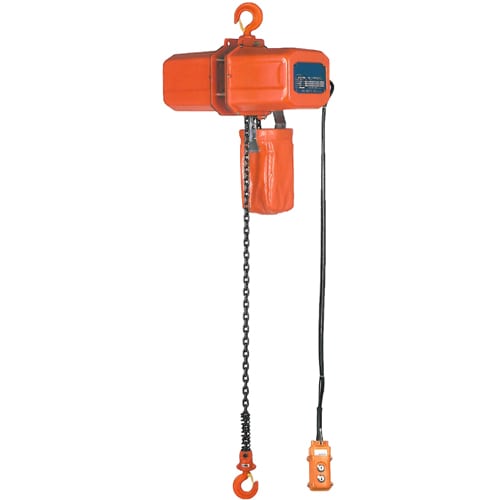

This Nitchi electric chain hoist is the three phase, dual/two speed version. Capacities ranging from 250kg to 2,000kg.

Features:

  • Slow speed works accurately when spotting the load
  • 4 to 1 speed ratio
  • IP54 protection for the hoist bodies
  • IP64 protection for the push button pendant control
  • Lifting and lowering limit switch system
  • Instantly responsive solenoid brake system.
  • Design Verified by SGS in New Zealand

If the capacity of hoist you need is out of stock, please view our alternative brand:



Model Rated Load (kg) Lift (m) Lifting Speed (m/min) Motor Output (kW) Rating (min) Load Chain Minimum Headroom G (mm) Net Weight (kg)
Fast Slow Fast Slow Fast Slow Dia. (mm) No. of falls
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
NECT40100-6 1000 3.0 5.6 6.7 1.4 1.7 1.1 1.3 0.27 0.33 30 10 7.1 1 570 54
6.0 58

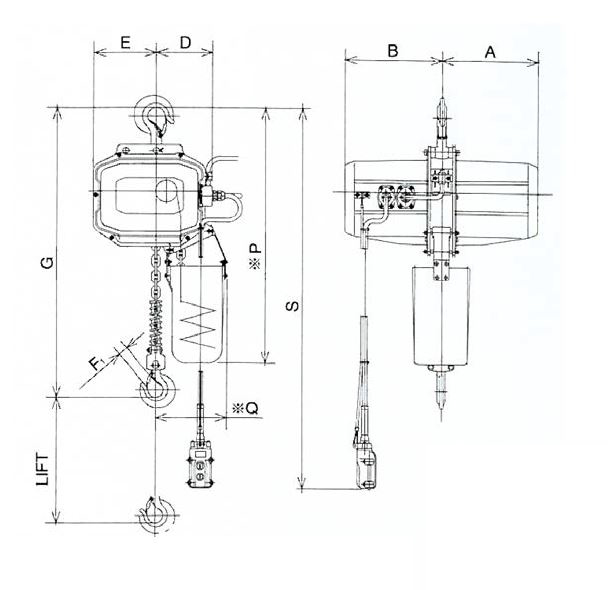

Model Rated Load (kg) Cable Length Major Dimensions (approx..) (mm)
Power Source (m) Pendant S(m) A B D E F1 P Q
NEC40100-6 1000 5.0 2.6 255 255 150 168 25 710 200
5.6



Nitchi overview:

  • Moisture and dust protection
  • Quiet and smooth operation
  • Over lifting and over lowering limit switch
  • Durable brake
  • Electro-magnetic controlled
  • Short head room
  • Remarkable durability
  • Easy servicing
  • Useful operation manual
  • Optional equipment available.
