Description

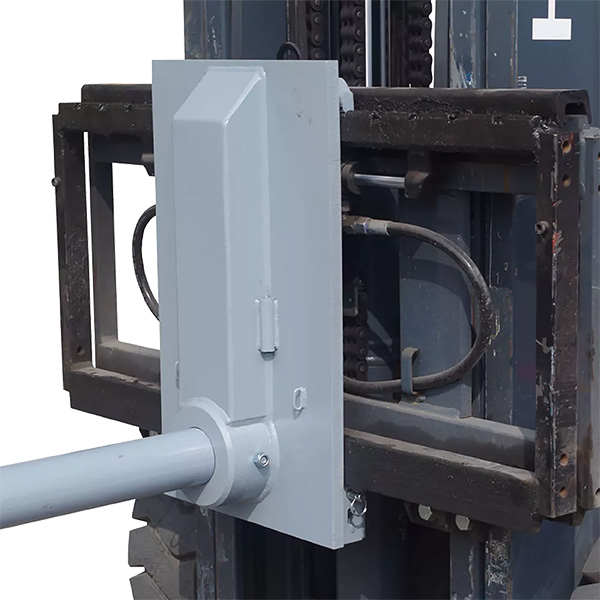

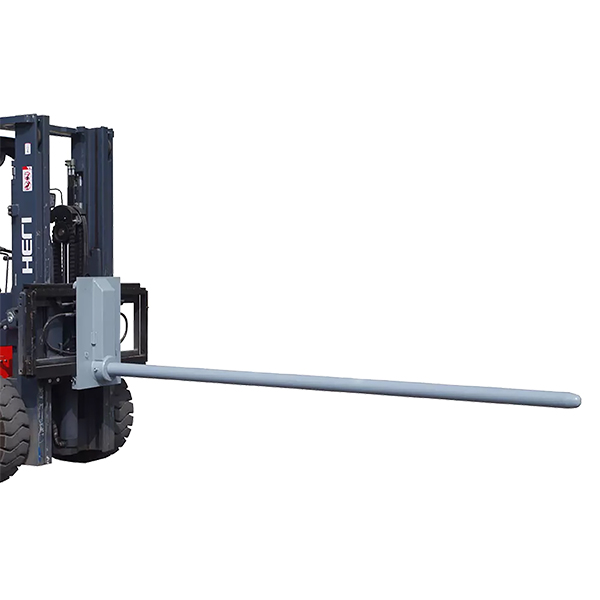

The carriage mounted roll prongs are suitable for carpet, vinyl, fabric etc. Units are available for Class II, III and IV forklift carriages, along with pin mounted.
All prong models are fitted with “quick release” mounting locks, providing a safe and easy connection to the forklift carriage, saving time and eliminating the need for any tools.
Prongs are made from high tensile steel, and come with an enamel paint finish. Includes instruction manual and manufacturer certificate to AS 2359.1 Standards.
Specifications:
| Product code | Mounting class | Prong diameter (mm) | Prong length (mm) | Working Load Limit / Load centres | Unit weight (kg) |
| RPC-QR2-60-2800 | 2 | 60 | 2800 | 340kg @ 1400mm | 113 |
| RPC-QR2-70-2800 | 2 | 70 | 2800 | 510kg @ 1400mm | 135 |
| RPC-QR2-80-2800 | 2 | 80 | 2800 | 850kg @ 1400mm | 166 |
| RPC-QR3-70-2800 | 3 | 70 | 2800 | 510kg @ 1400mm | 190 |
| RPC-QR3-80-2800 | 3 | 80 | 2800 | 850kg @ 1400mm | 220 |
| RPC-PM-200-1200 | Pin Mount | 200 | 1200 | 13,000kg @ 600mm | 1400 |
The following Sizes are available on request, please contact us to find out more:
| Product code | Mounting class | Prong diameter (mm) | Prong length (mm) | Working Load Limit / Load centres | Unit weight (kg) |
| RPC-QR2-40-1200 | 2 | 40 | 1200 | 200kg @ 600mm | 63 |
| RPC-QR2-50-1800 | 2 | 50 | 1800 | 250kg @ 900mm | 79 |
| RPC-QR3-90-2800 | 3 | 90 | 2800 | 1285kg @ 1400mm | 248 |
| RPC-QR3-100-2800 | 3 | 100 | 2800 | 1700kg @ 1400mm | 282 |
| RPC-QR4-125-1200 | 4 | 125 | 1200 | 6500kg @ 600mm | 280 |
| RPC-QR4-125-2800 | 4 | 125 | 2800 | 2785kg @ 1400mm | 440 |
| RPC-QR4-150-1200 | 4 | 150 | 1200 | 10,000kg @ 600mm | 360 |
| RPC-QR4-150-2800 | 4 | 150 | 2800 | 4285kg @ 1400mm | 565 |
