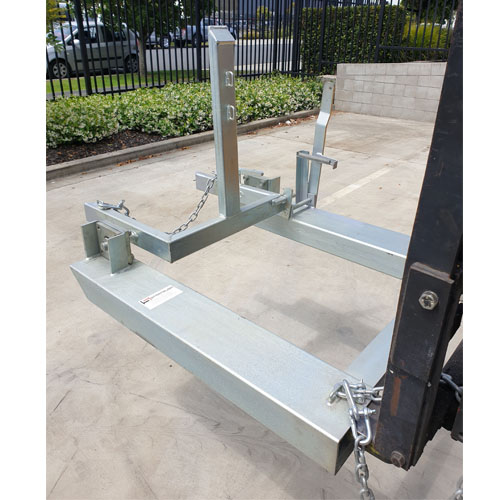

With two models available for our pull cord wheelie bin tippers, one for 240 litre and another for 660 litre wheelie bins, the STWB style tipper is operated from the forklift driver’s seat by pull-cord. The bin is secured in the wheelie bin cradle with safety chains. Galvanised finish.
- Pocket size 165 x 65mm
- Pocket centres 635mm
- Working Load Limit 1000kg
- HCG 800mm
- VCG 400mm
- Wheels, Crane Lugs & Lid Optional (STWB-660)
- Drain Valve & Strainer Optional (STWB-660)
- Hydraulic option available.
|Product Code||No. of bins||WLL (kg)||Fork Pocket Size (mm)||Fork Pocket Centres (mm)||Load Centre (mm)||Unit Weight (kg)|
|STWB-240||1 x 240 litre||500||165 x 65||840||1000||1200|
|STWB-660||1 x 660 litre||500||165 x 65||510||1700||1500|
Let us do the heavy lifting for you
Want to learn more about our tipping bins and wide range of forklift attachments?
Contact us now and be a step closer to reaching a solution best fit for your application.
