Description

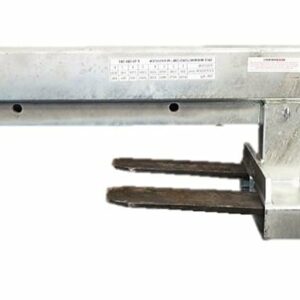

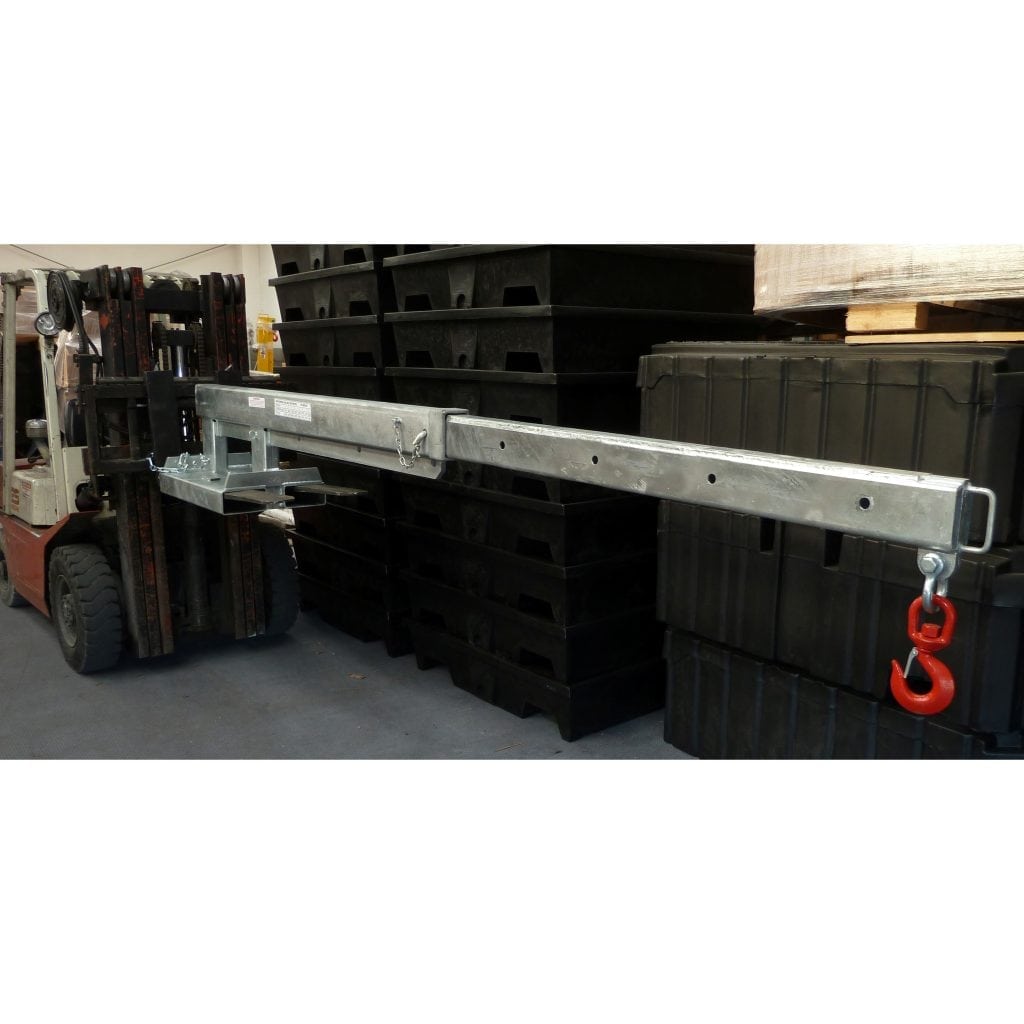

This forklift attachment long jib is designed as an affordable general purpose jib and is great for manoeuvring in confined spaces. It has a 3.5 metre reach when fully extended allowing for long reach lifts. Simply slide onto the fork tines and secure with safety chain.
Comes in a Galvanised coat and includes a manual and certificate safety chain and swivel hook.
Specifications:
- Working Load Limit 4750kg
- Pocket Size 185 x 65mm
- Pocket Centres 290mm
- Load Centre 870mm
- Horizontal centre of gravity 1295mm
- Vertical centre of gravity 125mm
- Unit Weight 170kg
- Manufactured strictly in accordance with AS 2359.1
| Detail | Working Load Limit (WLL) Per Position | |||||||
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Extension (mm) | 935 | 1395 | 1855 | 2000 | 2380 | 2760 | 3140 | 3520 |
| SWL (kg) | 4750 | 4275 | 3800 | 3300 | 2500 | 1300 | 760 | 480 |
