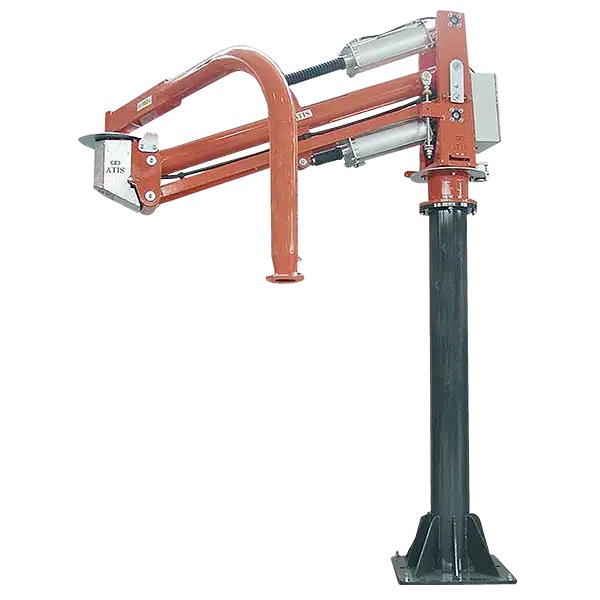

Pneumatic manipulator with articulated rigid arms - ATISmirus-300

Description

Pneumatic manipulator with articulated rigid arms, the ideal solution for heavier loads. Designed for higher performance, it maintains maximum precision and ergonomic movement even under the most demanding conditions. Reliability and safety are the key qualities of this manipulator, which can be adapted to specific handling needs through the application of dedicated gripping tools.

FEATURES:

OPERATION	Pneumatic only
MOTION TRANSMISSION	Parallelogram and terminal arm
EXECUTION	column fixed to the floor, column on self-standing baseplate, fixed overheadt, sliding overhead on rails
POWER SUPPLY	compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
COLUMN AXIS	continuous 360° rotation
INTERMEDIATE AXIS	max 300° rotation
NOISE LEVEL	70 dB

Please complete the form below and one of our team members will contact you shortly:

Maximum Net Capacity	440 kg* (radius 2450 mm)
Maximum Radius	4400 mm* (capacity 200 kg)
Minimum Radius	500 mm
Vertical Stroke	1500 – 1750 – 2000 – 2250 mm
Power Supply	compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
Column Axis	continuous 360° rotation
Intermediate Axis	max 300° rotation
Noise Level	<70 dB

* Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.
