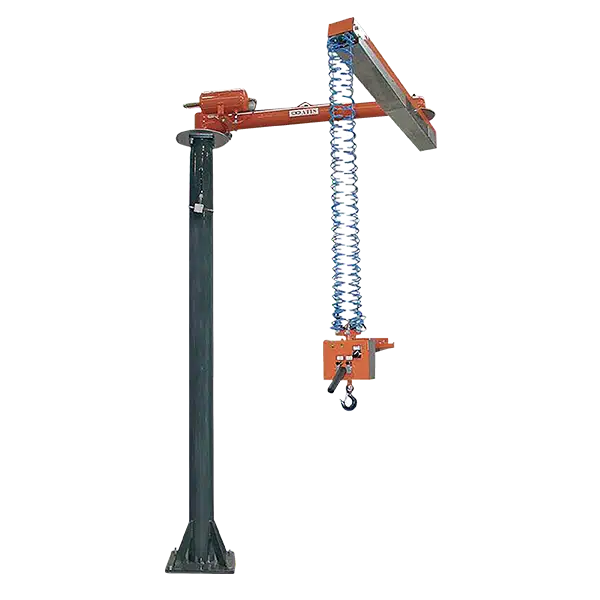

Pneumatic Manipulator - ATISacer-55

Description

Pneumatic manipulator for balanced lifting of loads up to 55 kg, distinguished by its fast movement thanks to the vertical stroke with double rope. Lightweight and compact, it solves various handling challenges, especially in tight workspaces. It adapts to specific handling needs through the application of customized gripping tools.

FEATURES:

OPERATION	Pneumatic only
MOTION TRANSMISSION	Dual-rope pulley system
CONFIGURATIONS	Fixed column, self-standing baseplate, overhead fixed, overhead sliding on rails
POWER SUPPLY	Compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
COLUMN AXIS	continuous 360° rotation
INTERMEDIATE AXIS	Max 330° rotation with stop
NOISE LEVEL	70 dB

Please complete the form below and one of our team members will contact you shortly:

Maximum Net Capacity	55 kg* (Radius 3500 mm)
Maximum Radius	4000 mm* (capacity 45 kg)
Minimum Radius	300 mm
Vertical Stroke	1600 mm

* Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.
