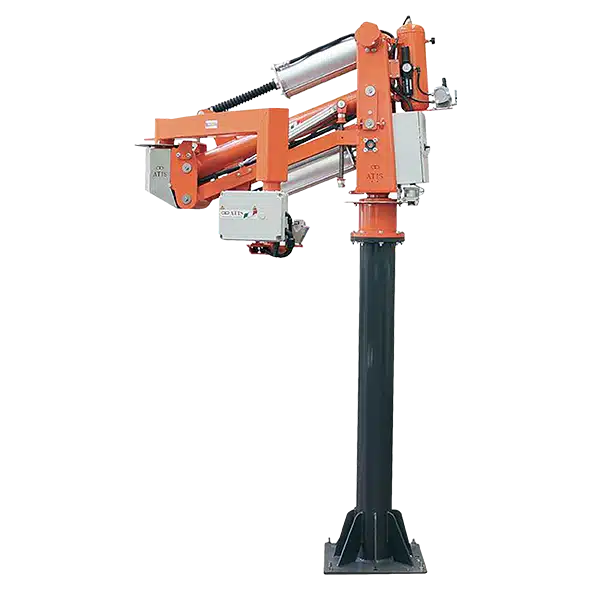

Pneumatic manipulator with articulated rigid arms - ATISmirus-500

Description

Pneumatic manipulator with articulated rigid arms, the ideal solution for the heaviest loads. Engineered for superior performance, it consistently delivers precision and ergonomic movement, even in the most critical conditions. Reliability and safety define this manipulator, which can be customized to meet specific handling requirements through the use of customized gripping equipment.

FEATURES:

OPERATION	Pneumatic only
MOTION TRANSMISSION	Parallelogram and terminal arm
EXECUTION	column fixed to the floor, column on self-standing baseplate, fixed overheadt, sliding overhead on rails
POWER SUPPLY	compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
COLUMN AXIS	continuous 360° rotation
INTERMEDIATE AXIS	max 300° rotation
NOISE LEVEL	70 dB

Please complete the form below and one of our team members will contact you shortly:

Maximum Net Capacity	600 kg* (radius 2700 mm)
Maximum Radius	4000 mm* (capacity 300 kg)
Minimum Radius	700 mm
Vertical Stroke	1400 – 1650 – 1850- 2100 mm
Power Supply	compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
Column Axis	continuous 360° rotation
Intermediate Axis	max 300° rotation
Noise Level	<70 dB

* Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.
