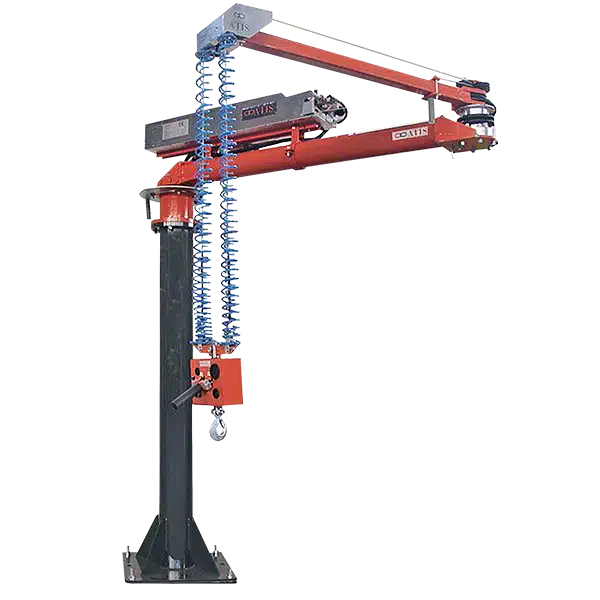

Pneumatic Manipulator - ATISacer-150

Description

The largest pneumatic manipulator in the ATISacer family is equipped with a double-rope pulley system and an additional pneumatic cylinder. Its pneumatic system allows balanced handling both with and without load. It is extremely lightweight, easy to handle, and fast in movement.

FEATURES:

OPERATION	Pneumatic only
MOTION TRANSMISSION	Dual-rope pulley system
CONFIGURATIONS	Fixed column, self-standing baseplate, overhead fixed, overhead sliding on rails
POWER SUPPLY	Compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
COLUMN AXIS	continuous 360° rotation
INTERMEDIATE AXIS	Max 330° rotation with stop
NOISE LEVEL	70 dB

Please complete the form below and one of our team members will contact you shortly:

Maximum Net Capacity	150 kg* (Radius 4000 mm)
Maximum Radius	5000 mm* (capacity 100 kg)
Minimum Radius	700 mm
Vertical Stroke	1800 mm

* Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.
