Pneumatic manipulator with articulated rigid arms - ATISmirus-200

Description

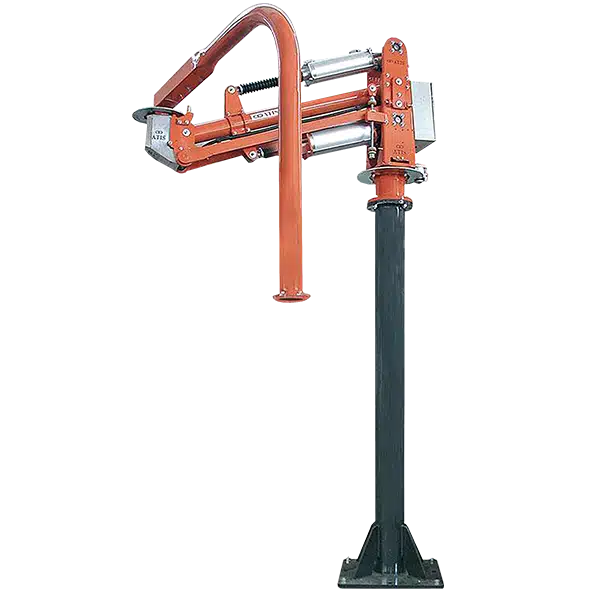

Pneumatic manipulator with articulated rigid arms, an enhanced version of the ATISmirus 100 model. Built with the same technical and structural features, it is equipped with an additional pneumatic cylinder to handle greater loads and extended working radius. It can be integrated with a customized gripping system developed according to the specific requirement of the production process.

FEATURES:

OPERATION	Pneumatic only
MOTION TRANSMISSION	Parallelogram and terminal arm
EXECUTION	column fixed to the floor, column on self-standing baseplate, fixed overheadt, sliding overhead on rails
POWER SUPPLY	compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
COLUMN AXIS	continuous 360° rotation
INTERMEDIATE AXIS	max 300° rotation
NOISE LEVEL	70 dB

Please complete the form below and one of our team members will contact you shortly:

Maximum Net Capacity	260 kg* (radius 2450 mm)
Maximum Radius	3250 mm* (capacity 180 kg)
Minimum Radius	400 mm
Vertical Stroke	1500 – 1750 – 2000 – 2250 mm
Power Supply	compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
Column Axis	continuous 360° rotation
Intermediate Axis	max 300° rotation
Noise Level	<70 dB

* Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.
