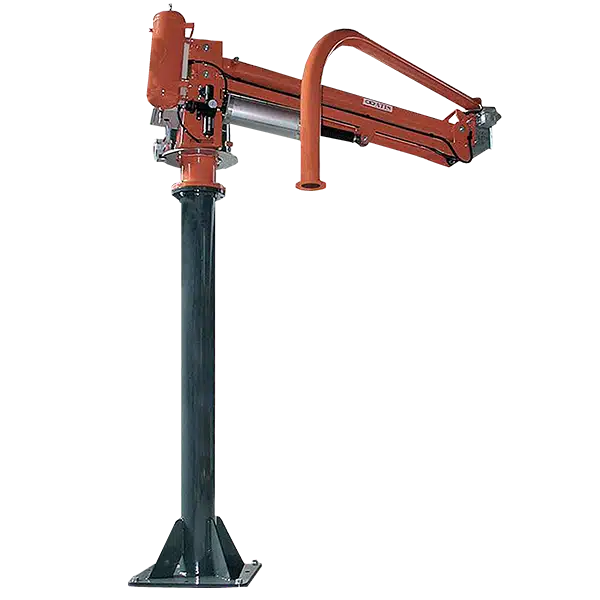

Pneumatic manipulator with articulated rigid arms - ATISmirus-100

Description

Pneumatic manipulator with articulated rigid arms, offering the perfect balance between lifting capacity and agility. Designed for handling loads that are neither too light nor too heavy, excellent in adapting to specific operational needs. When combined with a customized gripping tool, it enables the handling of offset products in any direction, without constraints.

FEATURES:

OPERATION	Pneumatic only
MOTION TRANSMISSION	Parallelogram and terminal arm
EXECUTION	column fixed to the floor, column on self-standing baseplate, fixed overheadt, sliding overhead on rails
POWER SUPPLY	compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
COLUMN AXIS	continuous 360° rotation
INTERMEDIATE AXIS	max 300° rotation
NOISE LEVEL	70 dB

Please complete the form below and one of our team members will contact you shortly:

Maximum Net Capacity	180 kg* (radius 2900 mm)
Maximum Radius	4000 mm* (capacity 100 kg)
Minimum Radius	400 mm
Vertical Stroke	1500 – 1750 – 2000 – 2250 mm
Power Supply	compressed air 0.5÷0.8 MPa (clean, dry, oil-free)
Column Axis	continuous 360° rotation
Intermediate Axis	max 300° rotation
Noise Level	<70 dB

* Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.
