Balken G2 Electric Trolley – Dual Speed

$2,246.00$8,367.00

See specifications below.

Clear
SKU: DET-/2S Categories: ,

Description

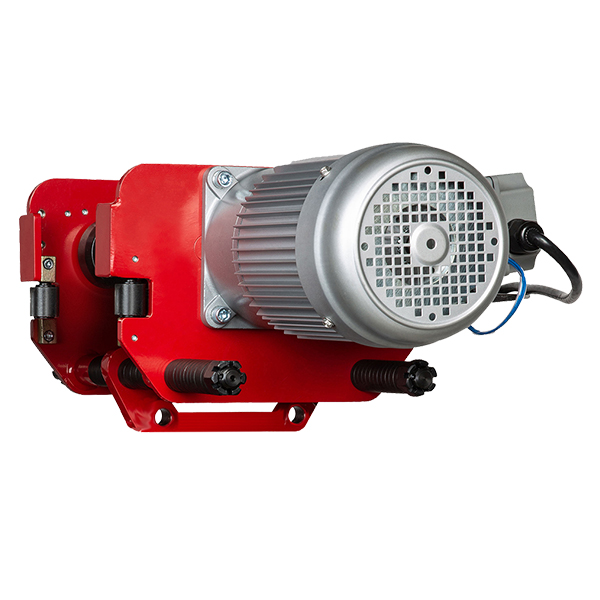

Balken Generation 2 – Industrial 400V Dual-Speed Electric Trolley with a 250kg – 5000kg capacity.

  • Balken Generation 2 Electric Trolley manufactured for Stratalign by Delta Hoists, Netherlands.
  • Built to European Standard Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
  • Made to the EU Electrical Safety Standard BS EN 60204-32:2008
  • Design Verified by NZ registered Chartered Professional Engineer.
  • Trolley is IP54 rated.
  • Balance support wheels enable smooth travelling along the beam.
  • Safety bars serve as fall, breaking and impact protection. Additionally equipped with tilting protection.
  • Permanently lubricated, ball bearing mounted wheels allow for smooth traversing.
  • Suitable for most I and H beam profiles.
  • Plug-and-play electrical connections allow you to easily connect the electric trolley to our Balken G2 Electric Hoists.  No electrician is required.

MODEL CAPACITY (kg) TRAVERSING SPEED (m/min) DUTY CYCLE (%) POWER OUTPUT (kW) BEAM WIDTH (mm) MIN. RADIUS (m) WHEEL DIAMETER (mm) NET WEIGHT (kg)
DET-250/2S 250 6.7/20 13.4/26.3 0.67/0.2 74-300 2.5 68 33
DET-500/2S 500 6.7/20 13.4/26.3 0.67/0.2 74-300 2.5 68 33
DET-1000/2S 1000 6.7/20 13.4/26.3 0.67/0.2 74-300 2.5 68 33
DET-2000/2S 2000 6.7/20 13.4/26.3 0.13/0.4 74-300 2.5 75 40
DET-3000/2S 3000 6.7/20 13.4/26.3 0.13/0.4 100-310 5 96 53
DET-5000/2S 5000 6.7/20 13.4/26.3 0.25/0.75 100-310 5 110 62

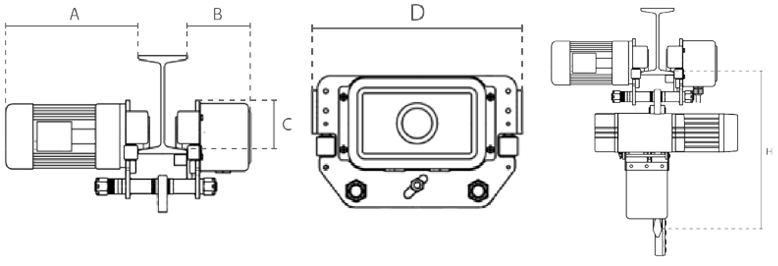

HOIST DIMENSIONS (MM)
MODEL A B C D H
DET-250/2S 336 131 97 320 438
DET-500/2S 336 131 97 320 480
DET-1000/2S 336 131 97 340 578
DET-2000/2S 338 132 113 340 670
DET-3000/2S 316 139 132 386 710
DET-5000/2S 318 141 130 426 870

This product has been Design Verified by a New Zealand Registered Chartered Professional Engineer (CPEng). A copy of this Certificate is available on request.


Standard Description
2006/42/EC European Standard Machinery Directive
BS EN 60204-32:2008 EU Electrical Safety Standard

Download the Product Spec below
