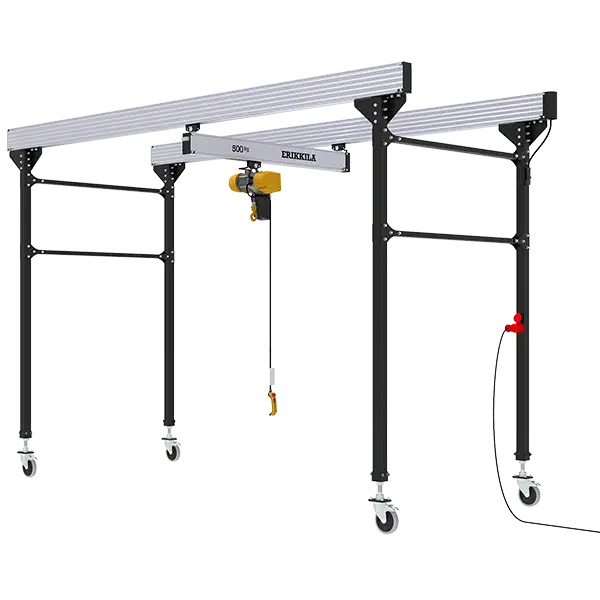

Erikkila Movable Workstation (Product View)

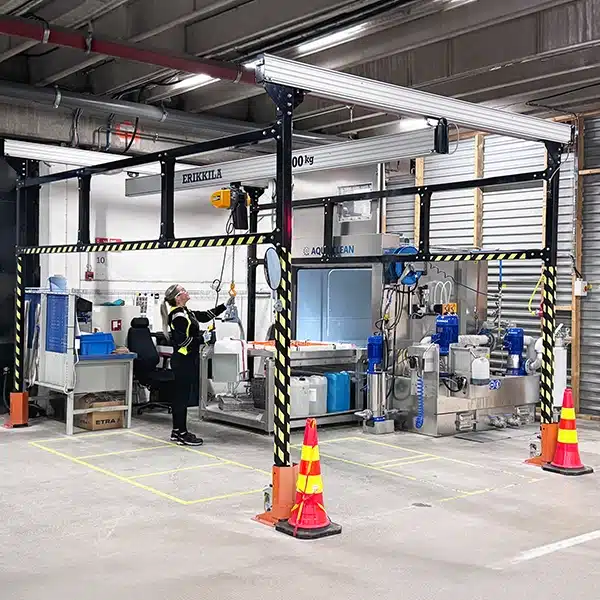

Erikkila Movable Workstation – Action Shot
Full Screen

Movable Workstation Crane

Request Pricing

See Specifications Above.

SKU: MWS Category:

Description

Movable Workstation Cranes provide versatile lifting and load handling precisely where it’s needed — at various workstations throughout the facility. They are ideal for environments without permanent crane systems, spaces where fixed installations aren’t possible due to structural limitations, or when lifting needs are temporary, such as during seasonal demand peaks. The cranes are quick to assemble and easy to relocate, offering a practical and flexible lifting solution for dynamic work environments.

FEATURES:

  • Quick installation – No need for anchors or building modifications
  • Fully movable – Quickly adjust to layout changes*
  • Ideal for temporary setups – Perfect for rental or interim facilities
  • Enhances efficiency and ergonomics – Improves productivity at the workstation level
  • Supports add-ons – Integrate lighting, electricity, compressed air, balancers, and more
  • Rental-friendly – A viable option for crane rental businesses
  • Reliable and safe – Designed for industrial use with heavy-duty casters and locking mechanisms
*Note: Movable workstation cranes must not be moved while carrying a load.

Movable workstation cranes have two standard power supply options:

  • Flat and round cables – A simple and cost-effective solution using a festoon system to keep cables organized and protected during trolley movement.
  • Internal conductor rail – A clean, modern alternative that eliminates loose cables, maximizes trolley travel, and ensures smooth, uninterrupted operation.

Please complete the form below and one of our team members will contact you shortly:











    • Size: Min. 2×3 m, Max. 5×8 m
    • Maximum Lifting Height: 2.88 m
    • Lifting Capacity: Max. 500 kg
    • Bridge Options: 1 or 2 bridges, with the option to choose raised bridges

    Erikkila Movable Workstation Dimensions

    TOTAL HEIGHT
    H (mm)
    INTERNAL HEIGHT
    H1 (mm)
    LIFTING HEIGHT
    LH (mm)
    BRACE HEIGHT
    H2 (mm)
    TRACK LENGTH
    L1 (mm)
    INTERNAL LENGTH
    L1 (mm)
    BRIDGE WIDTH
    W (mm)
    BRIDGSE SPAN
    S (mm)
    INTERNAL WIDTH
    W1 (mm)
    Min* 3315 2922 2484 2190 3000 2420 2000 1860 1780
    Max* 3440 3210 2883 2200 8000 7420 6000 5890 5780
    *Note: Depending on the capacity, crane dimensions, low headroom option and profile sizes.
