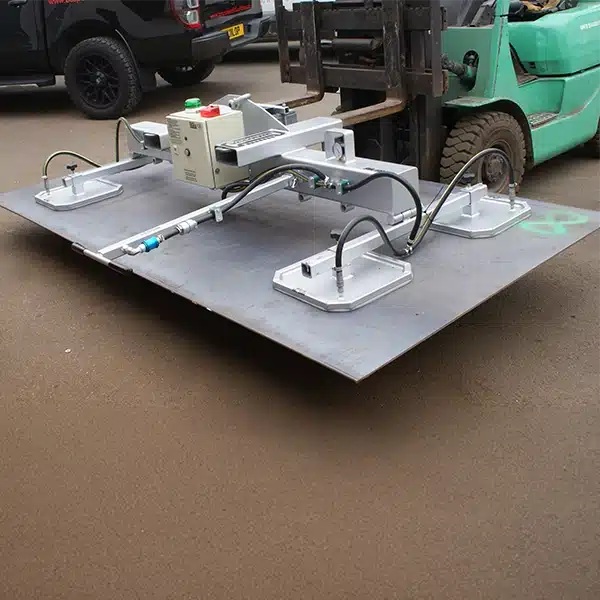

The Batlift QFC1KB is a versatile forklift and crane-mounted vacuum lifter designed for the safe handling of steel plates up to 3000 x 1500 mm and 3-25 mm thick, with a maximum lifting capacity of 1000 kg. With both fork pockets and a crane shackle point, this dual-mounting system offers flexibility across multiple lifting applications without the need for external power or reeling drums.

Key Features:

• Manually operated 3-way control valve on control arm (optional radio control available)

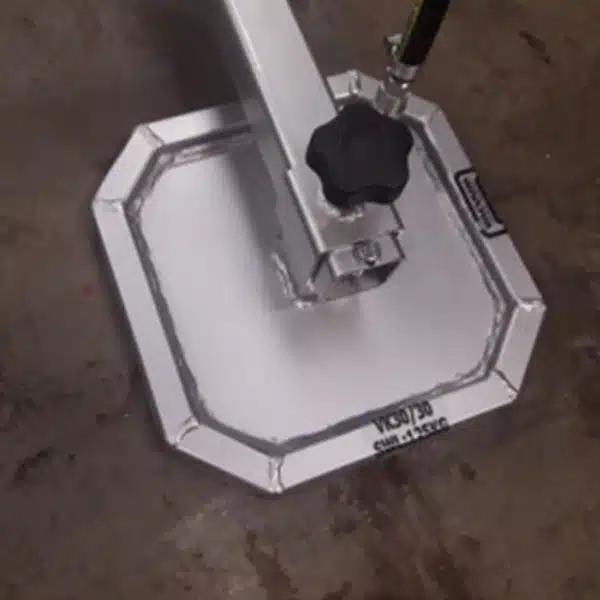

• Two heavy-duty VK40/40 suction pads (250 kg SWL each) with 15° swivel mounts
• Quick-release pin allows pads to be removed from the main beam
• On-board 88Ah battery with external 240V or 110V 3-stage smart charger
• Automatic pump cut-off at maximum vacuum to prolong battery life
• 100 mm vacuum gauge for at-a-glance pressure monitoring
• Dual mounting: 2 x fork pockets (600 mm centres) with threaded lock pins, plus crane lift shackle

Safety:

• Minimum 2:1 safety factor maintained at all times (1000 kg system exerts 2000 kg+ clamping force)

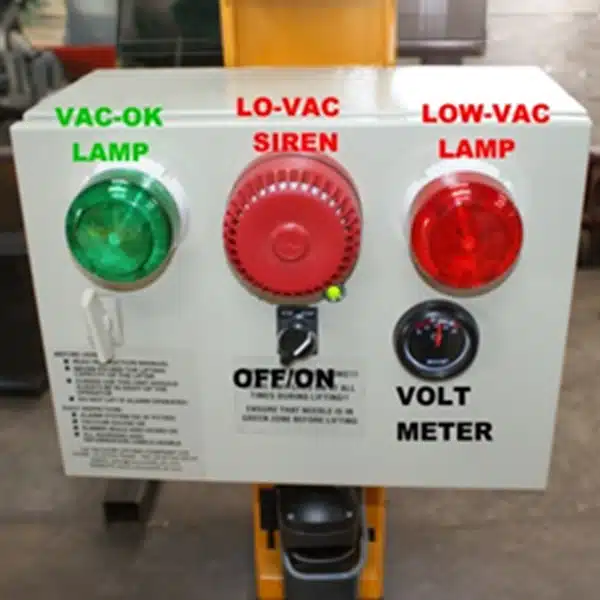

• Continuous audio-visual status indication: green confirmation lamp, warning siren, and red xenon flash
• Load remains secure until vacuum drops below 20%
• Minimum 20-minute hang-on time in the event of power failure (up to 7 days powered)
• Every unit factory-tested with concrete to twice the rated lifting capacity
• Inherently safe design — will not pick up sheets unless initial sealing criteria are met

Low Maintenance:

• Replaceable pad seals last 12+ months in standard applications and can be changed in minutes
• Advanced DC vacuum pump requires minimal servicing
• No installation or external connections required — easily interchangeable between forklifts

Optional Extras:

• Radio control system for remote operation, including spare transmitter and double solenoid valve
