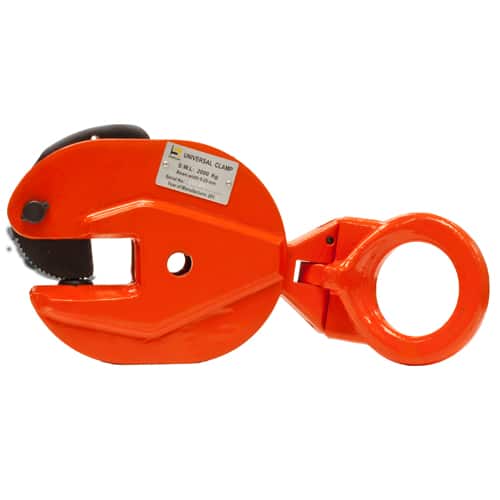

Universal Plate Clamp (Balken)


Strong all-steel construction

Clear

Description

The universal plate clamps are used for lifting turning and transporting flat metal material in all directions. These clamps can also be used for lifting and turning of steel or metal plates and beams.

  • Strong all-steel construction
  • Hardened pressure plate & tongue with safety lock
  • Designed to suit a range of beam sizes and can be easily re-positioned
  • Jaws clamp over lower beam flanges
  • Enables a simple faster portable and secure means of attaching a lifting point on existing beams
  • Available in 500kg-5000kg capacities
  • Universial Piviting Lifting Eye
Model UPC-0-50 UPC-1-00 UPC-2-00 UPC-3-00 VPC-5-00
Capacity (kg) 500 1000 2000 3000 5000
Test Load (kN) 10 20 40 60 100
Max. jaw opening (mm) 15 22 30 35 50
Dimensions (mm) A Ø30 Ø48 Ø68 Ø74 Ø80
B 43 63 78 85 100
C 34 50 61 57 66
D 0-17 0-22 0-27 0-32 0-52
E min 106 145 174 207 240
F 10 12 16 20 24
G max 216 292 369 428 481
H 50 66 76 102 110
Net Weight (kg) 2 4.5 7.3 15 21.6

Want to learn more about our universal plate clamps? Contact us now, and be a step closer to reaching a solution best fit for your application.
