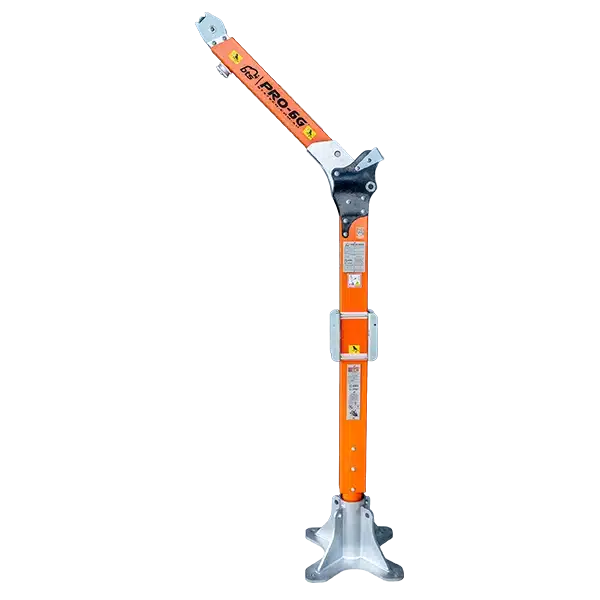

BTS PRO-6G Three Piece Rescue Rated Davit

Description

The Pro-6G Davit a lightweight aluminium modular unit that is easy to set up by just one person. With a built in fall and davit overload indicator, it is rated to 22kN.

Note: This version comes as a 3-piece option only (Mast Height 1.9m – 2.2m) and is designed for customers who do not need the full height 4-piece version (Mast Height 1.9m-2.8m), reducing cost and carry weight.

Davit Bases have to be rented seperately.

The PRO-6G davit system is a modular design allowing the user to create a davit setup for their individual requirements. With a range of brackets, winches and bases available, the PRO-6G Series is an ideal davit for confined space entry with a height of 1.96 – 2.20m and a offset of 0.5 to 0.7m.

Features

Manufactured using 6061-T6 Aluminium
Powder-coated with AkzoNobel Interpon D610 advance coating
Modular construction of up to 3 pieces allowing for ease of transport and storage
Inbuilt visual fall & overload indicator
5 Off set adjustment settings from 0.5 to 0.7m with self locking indexing pin
No special tools required for assembly or disassembly
Suitable for both man and material lifting/lowering applications
W.L.L. 140kg material handling
Primary anchor is Man rated to 12kN (136kg including all tools and clothing)
Secondary anchor is rated 15kN (anchor point for winch operator)
Suitable for use in both permanent and portable davit bases
Swivel 360 degrees
Quick connect winch interface bracket
AS/NZS 5532/ EN795/ ANSI Z359.18 compliant
Independently certified by BPEQ Registered Engineer for Queensland
Patent Pending System

Please complete the form below and one of our team members will contact you shortly:

Product Code	Rating	Lifespan	Dimensions	Materials	Safety Standard	Weight (kg)
ST-BTS-6G	22kN	Ongoing with Periodic Inspection	1.96 -2.2m and a offset of 0.5 to 0.7m	Lightweight material graded 6061-T6 Aluminum	AS/NZS 5532/ EN795/ ANSI Z359.18	25.7
