Fork Spreader

Full Screen

Fork Spreader

$6,179.25 plus GST

See specifications below.

This product has been in demand and we have low stock today. We have more stock coming, please contact our team if you require an ETA - 09 263 7725.

SKU: FJA-19-628 Categories: , ,

Description

Fork spreaders have been designed to safely lift extra wide or flexible loads, helping to prevent goods such as roof sheets, timber or plasterboard becoming damaged.

The fork spreader evenly distributes the load over the length of the attachment while moving/transporting. This slip on attachment is simple to use and is secured to the lift truck by a safety chain. Often used to stabilise wide loads of unstable products such as gyprock, steel bar or pipe that is manufactured and supplied in long random lengths.

The fork mounted spreader beam mounts over the forks of any standard forklift truck in seconds, adding stability to the load by means of a rigid beam carrying two extra forks. When elevated, the load acts as a single unit, eliminating any sag that could cause it to fall.

Features:

  • Includes certification plates, Manual and Certificate.
  • A safety chain is supplied to secure the Spreader to the fork carriage.
  • Manufactured strictly in accordance with AS 2359.1

*Enquire for further information, these units can be custom made to suit*

Let us do the heavy lifting for you

Want to learn more about our fork spreader forklift attachments?

Contact us now and be a step closer to reaching a solution best fit for your application.

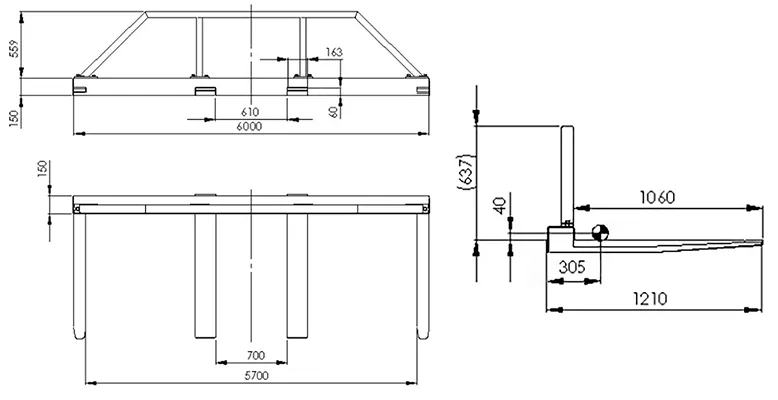

WORKING LOAD LIMIT (kg) LOAD CENTRE (mm) POCKET FORK SIZE (mm) POCKET CENTRES (mm) FORK LENGTH (mm) UNIT WEIGHT (kg)
3000 600 160 x 60 770 1210 260

WIDTH (mm) VERTICAL CENTRE OF GRAVITY (mm) HORIZONTAL CENTRE OF GRAVITY (mm)
3000 60 305

Download the Product Spec below

Download
