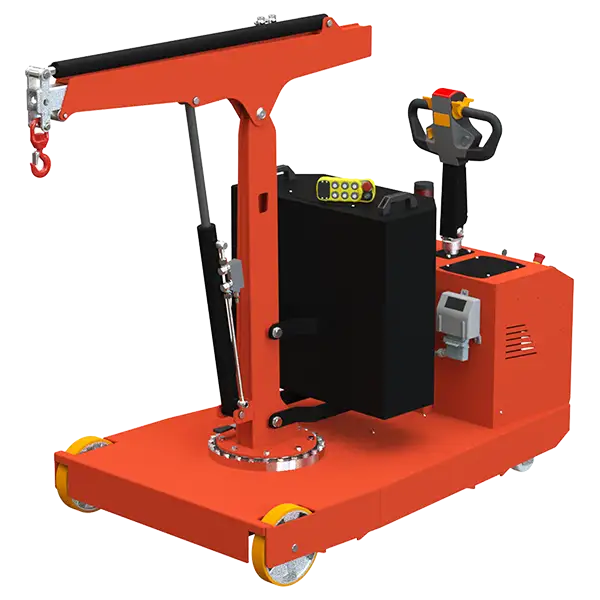

The ST-CBFLEXG500SBR is a counterweighted slewing crane with electric traction, designed for lifting loads of up to 500 kg with precision and efficiency.

Equipped with an electric extension featuring a 1000 mm stroke, it provides a maximum reach of 1430 mm. An optional mechanical extension, with a fixed capacity of 100 kg, extends the free overhang to 1930 mm, enhancing versatility for various lifting applications.

The slewing ring rotation, which can be locked every 30°, is manually operated and facilitated by high-quality bearings and two ergonomic handles positioned on the upper part of the ballast for smooth and effortless control. Designed for maximum maneuverability in tight spaces, the crane features two fixed wheels and a wheel motor connected directly to the tiller, ensuring precise and easy movement.

Standard Features

The ST-CBFLEXG500SBR comes equipped with maintenance-free sealed AGM batteries, an external battery charger, LED stack tower lights indicating correct crane operation and overload warnings, and an emergency stop function. A multifunction display provides real-time monitoring of battery charge level, voltage, and operating hours.

All boom functions, including lifting, lowering, extending, and retracting, are electronically controlled and adjustable via a wireless remote control. The speed and proportionality of movements are dynamically managed through the potentiometer on the remote control, ensuring precise and smooth handling.

Versatility & Applications

The ST-CBFLEXG500SBR is a universal mobile crane with unlimited application possibilities. Thanks to its 270° rotation and telescopic boom, it enables precise positioning of components, such as molds, spare parts, semi-finished products, and other loads, onto CNC machining centers, storage racks, assembly benches, and hard-to-access locations.

Safety Features

• A dynamic load limiter continuously monitors the lifted load and automatically restricts operations if the weight exceeds the pre-set safety threshold, preventing overloads and potential accidents.

• A block valve is automatically activated in the event of hydraulic hose failure, preventing uncontrolled load descent.

• The tiller handle includes a speed selector, allowing the operator to adjust travel speed based on operational needs:

  • Slow mode (1.5 km/h): Ideal for precise maneuvering in confined spaces and gentle load handling.

  • Standard speed (3 km/h): Suitable for long-distance transport in standard conditions.

The ST-CBFLEXG500SBR counterbalanced crane ensures safe and efficient load handling, fully compliant with current safety regulations, providing optimal protection for operators while maximizing productivity.
