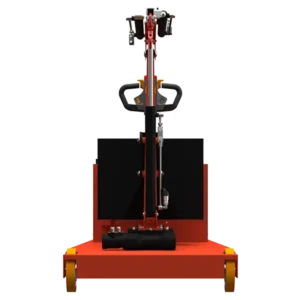

The ST-CBORBIT500EL is a fully electric slewing crane, designed to lift loads of up to 500 kg with precision, efficiency, and ease of operation.

Equipped with a double electric extension, it offers an overhang reach of 2,410 mm, providing exceptional flexibility for a wide range of lifting applications. A steering motor wheel enhances maneuverability, allowing for smooth and precise operation even in confined work environments.

The intuitive lever-based control system enables the operator to move the telescopic arm with exceptional precision and fluidity. The modulated speed control ensures smooth, accurate load positioning at any point within the crane’s range of motion. Additionally, the motorized rotation function enhances the crane’s versatility, making it ideal for lifting operations in restricted spaces.

As an all-in-one lifting solution, the ST-CBORBIT500EL optimizes and simplifies tasks such as loading and unloading molds, equipping CNC machining centers, positioning sheet metal on plasma cutting machines, and maintaining or assembling components across various types of machinery.

For maximum maneuverability in confined spaces, the ST-CBORBIT500EL is designed with a compact width of just 990 mm, and its rotating arm-ballast system operates without additional encumbrances, making it a highly efficient and space-saving lifting solution.

The lever-operated control system allows for adjustable and proportional speed control of lifting, lowering, extension, retraction, and arm rotation, ensuring seamless and controlled operation.

Standard Equipment

The ST-CBORBIT500EL comes equipped with sealed, maintenance-free AGM batteries, an external battery charger, an LED indicator light for operational status and overload warnings, and an emergency stop button. A multifunction display provides real-time monitoring of battery charge level, voltage, and operating hours.

Safety Features

• A dynamic load limiter continuously monitors the lifted or moved load and automatically restricts operations if the weight exceeds the pre-set safety threshold, preventing overloads and potential accidents.

• A block valve is automatically activated in the event of hydraulic system failure, preventing uncontrolled load descent.

• The tiller arm includes a speed selector, allowing the operator to adjust movement speed based on operational needs:

  • Slow mode (1.5 km/h): Ideal for precise maneuvering in confined spaces and gentle load handling.

  • Standard speed (3 km/h): Suitable for efficient long-distance transport in standard conditions.

With its compact design, advanced control system, and outstanding maneuverability, the ST-CBORBIT500EL is a powerful and adaptable lifting solution, perfect for industries requiring precision, efficiency, and seamless operation in confined spaces.
