The ST-CBATLAS1TE3L electric mobile lifting crane is a fully electric, high-performance lifting solution capable of handling loads up to 1,000 kg.

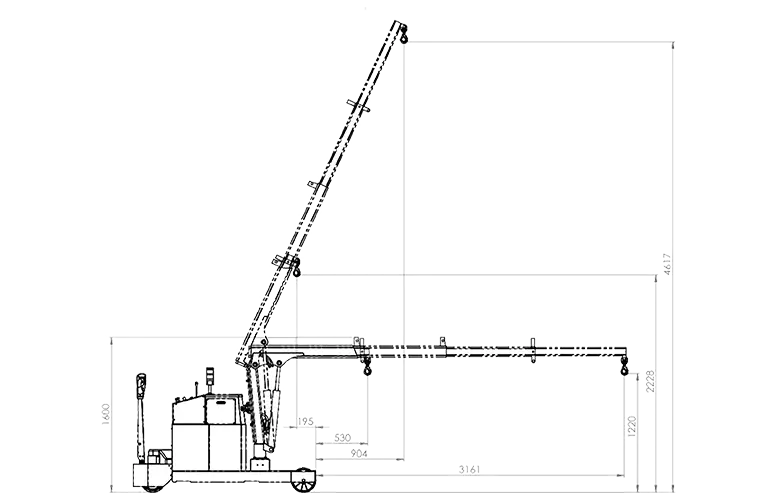

Equipped with a triple electric boom, the ST-CBATLAS1TE3L provides an extended free overhang of over 3 meters, offering exceptional reach for various lifting applications.

The crane features control levers that allow the operator to manage all lifting arm movements with adjustable and proportional speed, ensuring maximum precision and control during load handling and positioning.

One of the key advantages of this Pick & Carry crane is its ability to move while carrying a suspended load, as it operates without stabilizers, making it a versatile and efficient solution for a wide range of industries.

With a width of just 800 mm, the ST-CBATLAS1TE3L is the most compact motorized crane in its category. Its exceptional maneuverability, tight steering angle, and ability to rotate on itself make it ideal for operating in confined and complex environments.

Standard Features

The ST-CBATLAS1TE3L comes equipped with maintenance-free sealed AGM batteries, an external battery charger, LED stack tower lights for operational and overload warnings, and an emergency stop system. A multifunctional display provides real-time monitoring of battery charge level, voltage, and hours of operation.

All movements, including lifting, lowering, extending, and retracting the boom, are electric-controlled and adjustable via control levers located on the crane’s control panel. Speed and proportionality are dynamically managed through lever movement, ensuring smooth and precise operation.

Safety Features

• A dynamic load limiter continuously monitors the lifted or handled load, preventing overloading and potential accidents by automatically limiting operations if the load exceeds the predetermined safety threshold.

• A block valve activates automatically in the event of hydraulic hose failure, preventing uncontrolled load descent.

• The tiller handle includes a speed selector that adapts the crane’s movement to different operating conditions:

  • Slow mode (1.5 km/h): Ideal for precise maneuvering in confined spaces and delicate load handling.

  • Standard speed (3 km/h): Suitable for covering longer distances efficiently in standard operating conditions.

Customization & Accessories

The ST-CBATLAS1TE3L can be customized with a variety of lifting accessories for specialized applications, including lifting suction cups, beams, clamps, tilters, permanent magnets, and more.

Combining compact design, advanced control features, and unmatched maneuverability, the ST-CBATLAS1TE3L is a powerful and flexible lifting solution for industries requiring precision, efficiency, and maximum mobility.
