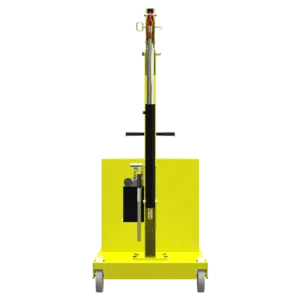

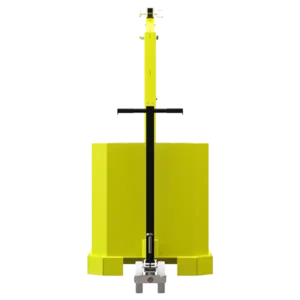

The ST-CBGZ1000 counterbalanced crane is a compact and mobile lifting solution designed to handle loads of up to 1000 kg. Ideal for industrial and logistics environments, this crane provides flexibility and efficiency where a mobile lifting system is required.

Equipped with a 200 mm diameter nylon wheel tiller, the ST-CBGZ1000 allows for effortless maneuverability, enabling the crane to rotate smoothly in tight spaces. Its 800 mm front footprint ensures easy movement and positioning, even in restricted areas.

Constructed entirely from painted steel, the ST-CBGZ1000 is built for durability and stability. The base is fitted with two forklift pockets, facilitating safe and efficient transport over long distances using a forklift.

The lifting mechanism operates through a double-acting manual pump, while the controlled descent system allows for precise speed regulation via an ergonomic rotation knob.

For enhanced safety and reliability, the hydraulic system features a blocking valve to prevent accidental load descent in case of pipe failure and a safety valve to protect against overloading.

The boom is adjustable in four positions, with an optional extension available to increase the maximum outreach to 2000 mm.

The ST-CBGZ1000 is particularly well-suited for assembly and disassembly of mechanical components, frequent maintenance tasks, and installation operations on industrial machinery. By reducing the physical workload and streamlining lifting procedures, this crane ensures faster, safer, and more efficient interventions.
