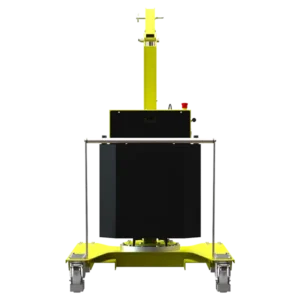

The Model ST-CB01B5 is designed for lifting and handling loads of up to 500 kg. It features a 360° rotating crane arm, which can rotate freely when the control lever is in the rest position or lock into place every 30° via a slewing ring at the base of the column. Two ergonomic handles ensure smooth and easy rotation. The crane is equipped with a swivel hook featuring a safety lock, and a robust, removable push handle.

What sets the ST-CB01B5 apart is its exceptionally compact front footprint of just 980 mm—the smallest in its class—making it extremely maneuverable in tight spaces. It moves effortlessly on two high-capacity swivel wheels with bumper guards and parking brakes, along with two fixed front wheels mounted on bearings. The entire chassis is made from stove-enamelled steel and includes two forklift pockets at the base, enabling safe and easy transport over longer distances.

The boom is raised and lowered electrically at a fixed, non-adjustable speed, controlled via two dedicated buttons on the handheld controller, which also includes an emergency stop for added safety.

The hydraulic system is equipped with a block valve that prevents load drop in the event of a hose failure, and a relief valve to protect the crane from overloading.

The arm is extendable in four positions, and three optional extension kits are available to increase the maximum outreach to 2050 mm.

An external battery charger is included. The crane is powered by a lead-acid battery, with optional upgrades to a maintenance-free AGM sealed battery or a lithium battery.

A multifunction display provides real-time information on battery charge level, voltage, and operating hours.
