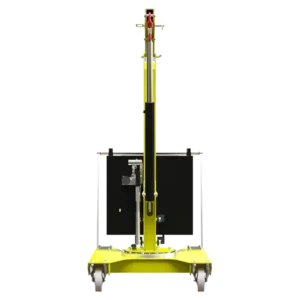

The ST-CB01M2 counterbalanced swivel crane is a 200 kg capacity model equipped with a lever-controlled, fast and lightweight double-action pump for efficient lifting. The controlled descent knob allows for precise adjustment of the lowering speed, ensuring smooth and safe operation.

Designed for effortless lifting, the ST-CB01M2 is part of a comprehensive range of counterbalanced 360° swivel cranes with manual traction, supporting capacities up to 500 kg and a maximum outreach of 2050 mm. Available with either hydraulic lever control or electric control, these cranes provide a cost-effective and highly flexible solution for a wide variety of applications, including machining centers, machine tools, assembly line deliveries, assembly operations, and general goods handling.

Thanks to its compact design, the ST-CB01M2 is easy to maneuver even under full load and can be effortlessly operated in tight or confined spaces. Manufactured entirely in Italy, it guarantees exceptional construction quality and flawless performance.

The hydraulic system is designed with safety in mind, featuring a lock valve to prevent accidental load drops in the event of a pipe failure and a pressure relief valve to protect against overloading.

The crane is equipped with two high-capacity swivel wheels with bumper mounts and parking brakes, as well as two fixed front wheels mounted on bearings, ensuring stability and smooth maneuverability. The painted steel frame is fitted with two forklift supports at the base, allowing for safe and easy transport over long distances. A sturdy, removable push handle enhances ease of operation, while two additional handles facilitate smooth rotation of the counterweight. The swivel hook includes a safety lock, and the rotating jib arm can be locked every 30° for added stability.

The arm is extendable in four positions, with three optional arm extensions available to achieve a maximum outreach of 2050 mm.

Designed for ease of use with no installation required, the ST-CB01M2 counterbalanced crane is the ideal solution for businesses looking to enhance efficiency in their production processes while maintaining maximum operator safety.

Multifunction display showing charge level, battery voltage and operating hour meter.
