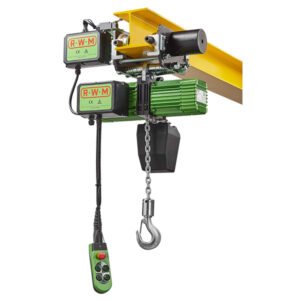

RWM Electric Chain Hoist with Electric Trolley – Dual Speed – 500KG Capacity

RWM-W-ET
RWM-W-ET
Full Screen

RWM Electric Chain Hoist with Electric Trolley – Dual Speed – 500KG Capacity


See specifications below.

Clear
SKU: W-ET-500-2/S Categories: , ,

Description

RWM hoists can be considered the Ferrari of hoist brands, and not just because they are engineered and manufactured in Italy by an in-house team.

RWM prides itself on engineering excellence: every hoist is hand-crafted from the highest quality materials. As a result, RWM hoists can safely operate in temperatures as low as -20°C and as high as +50°C – an operating range up to 40% larger than other common hoist brands. This makes RWM the go-to hoist for material handling tasks in harsher environments.

RWM hoists are also the ideal option for demanding industrial applications where uptime is critical, with a duty cycle of 40%.

RWM hoists and the more common economy hoists are different tools designed for various uses. Just as you wouldn’t invest in a Ferrari as a run-around vehicle, you wouldn’t invest in a RWM hoist if you don’t require the additional quality and reliability that comes with a hand-built, European-engineered masterpiece.

Choose RWM as your go-to hoist for more challenging and demanding situations where quality and durability is paramount.

FEATURES

  • RWM Electric Chain Hoists are manufactured for Stratalign by RWM, Italy who are ISO 9001:2015 Certified.
  • The Hoists are built in compliance with European regulations:
    • Machinery Directive (DM) 2006/42/CE
    • Low Voltage Directive (DBT) 2014/35/UE
    • Electromagnetic Compatibility Directive (EMC) 2014/30/UE
  • Design Verified by a NZ registered Chartered Professional Engineer.
  • Cylindrical three-phase self-braking motor with an electromagnet, all with class F insulation.
  • The motor brake system is 103V electromechanical spring type.
  • Hoist is IP54 rated.
  • The load limiter clutch is a device that limits the maximum travel both upward and downward and acts as a limiter for overloads.
  • The epicyclical type gearbox is lubricated with permanent grease. It is built in high resistance steel and subjected to heat treatments, thus guaranteeing a long life. With the recommended lubricants the hoist is able to operate in environments with temperatures between -20 ° C and + 50 ° C.
  • The electrical panels are produced according to the CEI-EN 60204 standard with the traditional wiring system.
  • The 24V low voltage transformer allows the hoist to carry out a high number of operations equal to 240 starts / hour.
SPECIFICATIONS
Operating Voltage 400V / 50Hz / 3Ph
Load Chain Load chain according to EN 818-7-DAT/DT
Pendant Control Cable 5 metre
Power Cable ≈ 4.5 metre without plug
Hoist Protection IP 54
Classification M5/2m (ISO/FEM)
Duty cycle / Starts per hour 40% / 240
Insulation Class F
Operating Temperature -20°C – +50°C
PROTECTION
Control Switch 24V pendant control switch with emergency stop button
Overload Protection Load limiter clutch acts as limiter for overloads.
Brake Electromagnetic spring pressure brake, holds the load in the event of power failure
Limit Switch Electro-mechanical upper and lower limit switch
Thermal Protection Protected through heat sensor
MODEL CAPACITY (kg) LIFTING SPEED (m/min) LOAD CHAIN (Ømm) CHAIN FALLS POWER OUTPUT (kW) NET WEIGHT (kg)
W-ET-500-1/4-7/14 500 1/4 5 x 15 1 0.25 – 1 65
W-ET-500-2/8-7/14 500 2/8 7 x 22 1 0.4 – 1.8 74
MODEL TYPE CAPACITY (kg) TRAVERSING SPEED (m/min) Duty Cycle % POWER OUTPUT (kW) BEAM WIDTH (mm) MIN. RADIUS (m) WHEEL DIAMETER (mm)
W-ET-500-1/4-7/14 CE1 500 7/14 40 0.1/0.2 64 – 160 1 65
W-ET-500-2/8-7/14 CE1 500 714 40 0.1/0.2 73 – 160 1 70





HOIST DIMENSIONS (MM)
MODEL A A1 B B1 B2 B3 B4 D D1 E E1 F H H1 H2 H3 L M N P ØR S ØT
W-ET-500-1/4-7/14 415 145 65 158 283 40 12 177 155 27 31 25 150 245 225 470 150 175 280 155 65 225 14
W-ET-500-2/8-7/14 455 148 73 162 287 40 12 205 155 28 30 29 190 250 233 483 160 182 280 156 70 280 18

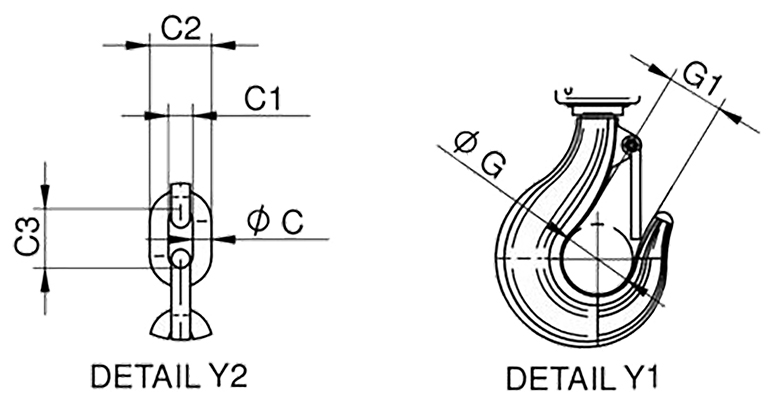

HOIST DIMENSIONS (MM)
MODEL ØC C1 C2 C3 ØG G1
W-ET-500-1/4-7/14 5 6 16.9 15 37 26
W-ET-500-2/8-7/14 7 8.4 23.6 22 37 26

This product has been Design Verified by a New Zealand Registered Chartered Professional Engineer (CPEng). A copy of this Certificate is available on request.


Standard Description
(DM) 2006/42/CE European Standard Machinery Directive
(DBT) 2014/35/UE Low Voltage Directive
(EMC) 2014/30/UE Electromagnetic Compatibility Directive
