Description

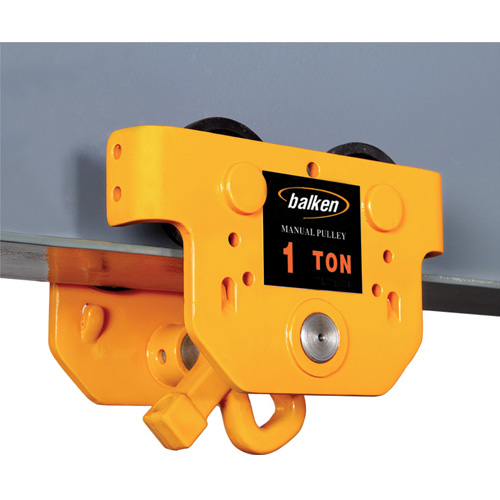

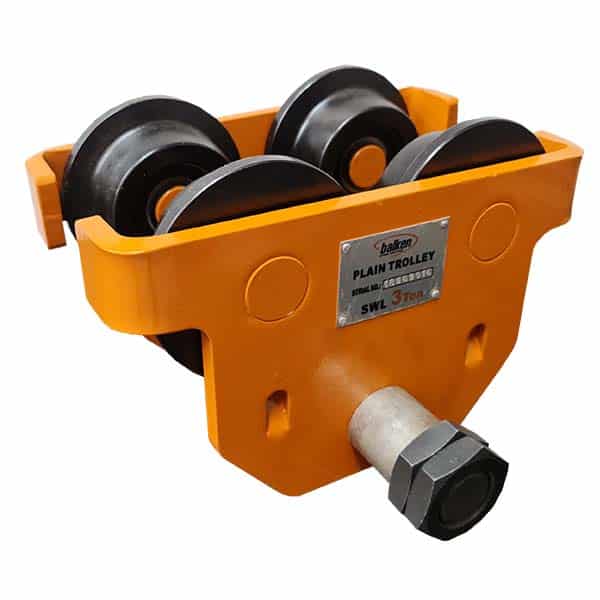

The Balken manual girder hoist trolley can quickly and easily turn many beams into a simple overhead crane system.
Features:
- Adjustable to suit many beam widths by simply changing the spacers
- High grade sealed ball bearings
- Anti-drop plates
- A contour wheel design provides maximum beam contact on flat or tapered beams
- 500kg to 10,000kg capacity.

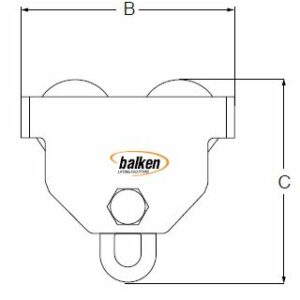

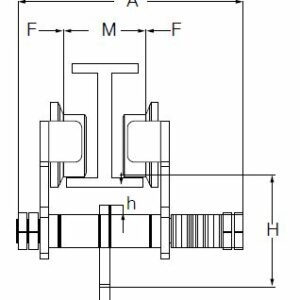

| Model | Capacity (kg) | Min radius of curve | Dimensions (mm) | Weight (kg) | |||||
| A | B | C | H | M | F | ||||
| MT-0-50 | 500 | 0.9 | 210 | 195 | 180 | 90 | 68-203 | ≈3 | 5.5 |
| MT-1-00 | 1000 | 1 | 230 | 210 | 200 | 95 | 80-203 | ≈3 | 8.2 |
| MT-1-50 | 1500 | 1 | 245 | 250 | 223.5 | 125 | 80-203 | ≈3 | 13 |
| MT-2-00 | 2000 | 1.1 | 245 | 250 | 223.5 | 125 | 80-203 | ≈3 | 13 |

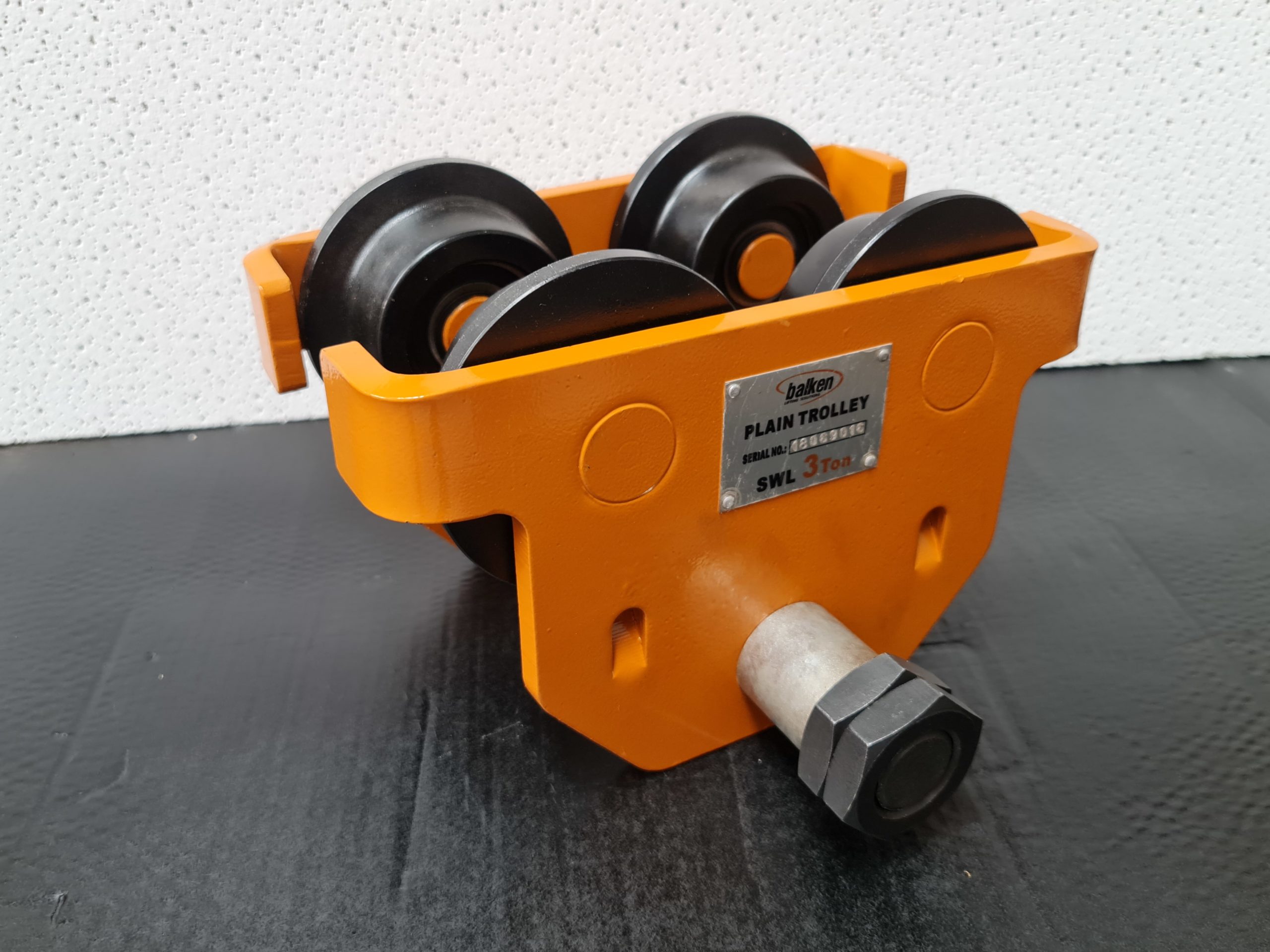

| MT-3-00 | 3000 | 1.3 | 280 | 280 | 228.5 | 140 | 88-203 | ≈3 | 21 |
| MT-5-00 | 5000 | 1.4 | 335 | 335 | 334.5 | 170 | 100-203 | ≈3 | 34 |
| MT-10-00 | 10000 | 1.7 | 345 | 460 | 490 | 275 | 122-203 | ≈3 | 89 |
