Concrete Cone Skip 1.0cu/m

Sale!
Full Screen

Concrete Cone Skip 1.0cu/m

$5,598.60 plus GST

See specifications below.

In stock

SKU: CHA-22-10 Categories: , Tag:

Description

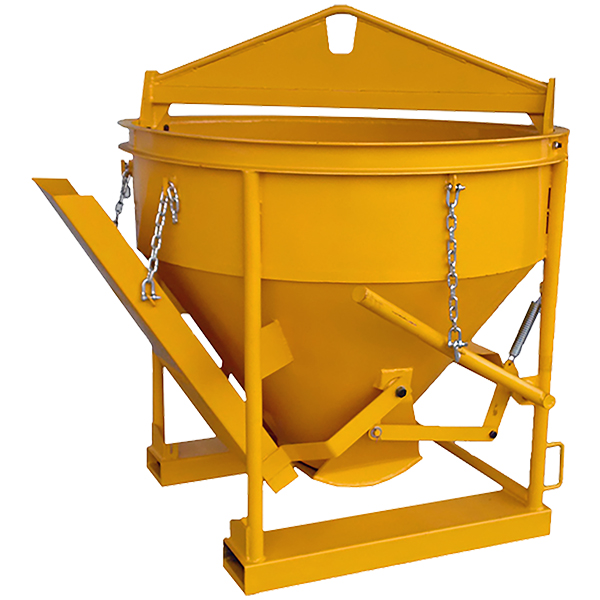

This large concrete cone skip attachment has been designed for the easy transfer of concrete on-site by overhead cranes. Lightweight yet heavy-duty, a concrete cone skip can be used for both bottom and side discharge with the use of the adjustable chute.

The unit is a lever operated from either side for easy operation and is also fitted with fork pockets for transport purposes. Enamel painted finish in safety yellow. Comes with an instruction manual and certificate.

Specifications:

  • Capacity 1.0 cu/m
  • Working Load Limit 3000kg
  • Unit weight 320kg
  • Filling height 1295mm
  • Fork pocket size – 165 x 65mm
  • Pocket centres – 870mm



Product Code Capacity (cubic/meter) WLL (kg) Unit Weight (kg) Filling Height (mm) Transport Dimensions (mm)
CHA-22-10 1.0 3000 320 1295 1450L x 1540W x 1680H

Let us do the heavy lifting for you

Want to learn more about our concrete cone skips and wide range of crane attachments?

Contact us now and be a step closer to reaching a solution best fit for your application.
