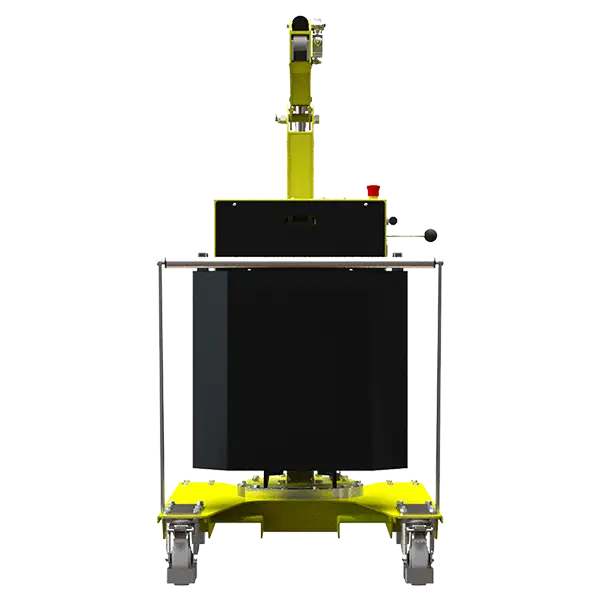

The ST-CB01B2SE-1000 is a compact, high-performance swivel crane designed for maximum operational flexibility. With a load capacity of 200 kg and a 360° rotating arm that locks in 30° increments, it offers precise and adaptable handling in a wide range of applications. Its narrow front footprint of just 780 mm makes it an ideal choice for use in confined spaces. The integrated counterweight, featuring two ergonomic handles and a swivel bearing, ensures smooth and secure rotation.

The crane is equipped as standard with nylon wheels: two heavy-duty swivel casters with shock absorbers and parking brakes provide stability and safety under full load, while two fixed front wheels mounted on high-quality bearings ensure smooth and precise maneuverability. The durable powder-coated steel frame includes forklift pockets, allowing for safe and easy transport over longer distances.

The ST-CB01B2SE-1000 model features an electric telescopic boom with a 1000 mm stroke. The lifting and lowering of the arm, as well as the extension and retraction of the boom, are controlled via a lever connected to a 4-function distributor, offering highly precise and electrically controlled movement for accurate load positioning. A controlled descent system with integrated safety features and engine-off operation ensures secure and efficient handling.

The hydraulic system is equipped with a lock valve that prevents the load from falling in the event of accidental pipe failure, along with a pressure relief valve to protect the crane from overloading.

An optional boom extension is available, increasing the maximum outreach to 1910 mm.

This crane is a cost-effective and highly versatile solution for lifting and transporting loads in a wide range of environments, including machining centers, machine tools, assembly lines, and general material handling. Thanks to its compact size, the counterbalanced crane remains highly maneuverable even under full load and is ideal for navigating restricted spaces. All components are manufactured in Italy, ensuring premium construction quality and long-lasting reliability.

The crane includes an external battery charger and is powered by a lead-acid battery, with optional upgrades available to a maintenance-free AGM sealed battery or a lithium battery. A multifunction display shows battery charge level, voltage, and operating hours for easy monitoring.

The ST-CB01B2SE-1000 is the preferred model for challenging placements—from ground-level lifting onto 3D machines, lathes, over perimeter guards, or through narrow openings—particularly where forklifts or larger lifting equipment cannot operate, thanks to its 360° rotation and compact, agile design.
