Goods Crane Cage

Sale!
Full Screen

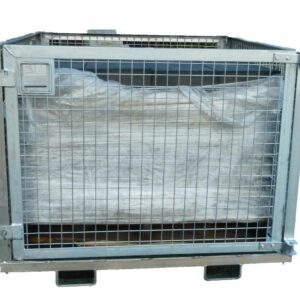

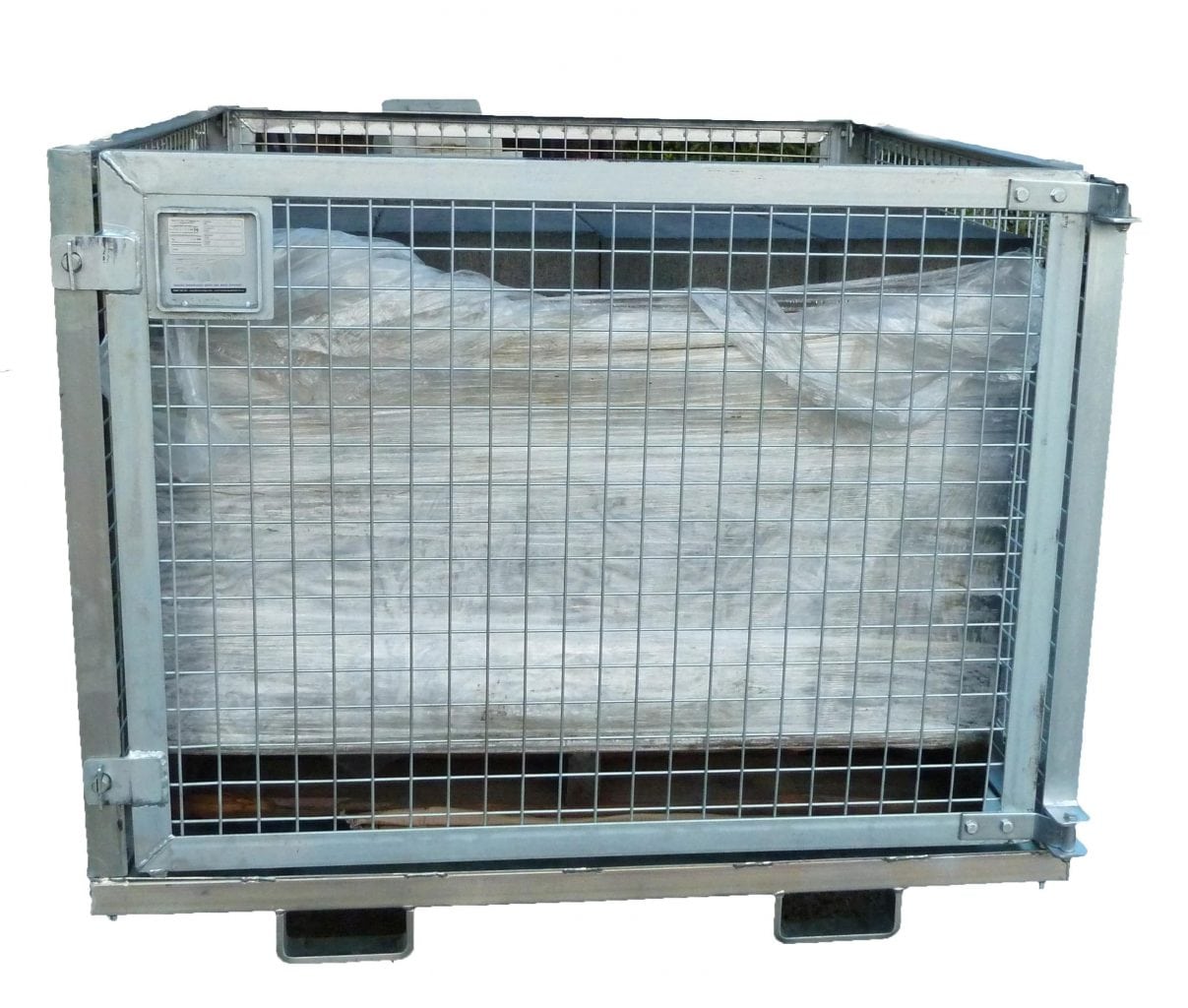

Goods Crane Cage


See specifications below.

Description

These goods cages are made for the transport of loose or palletized goods using either a forklift or crane. The full width gate on the FMC-19-125, allows 1200mm square pallets to be placed inside the cage if required.

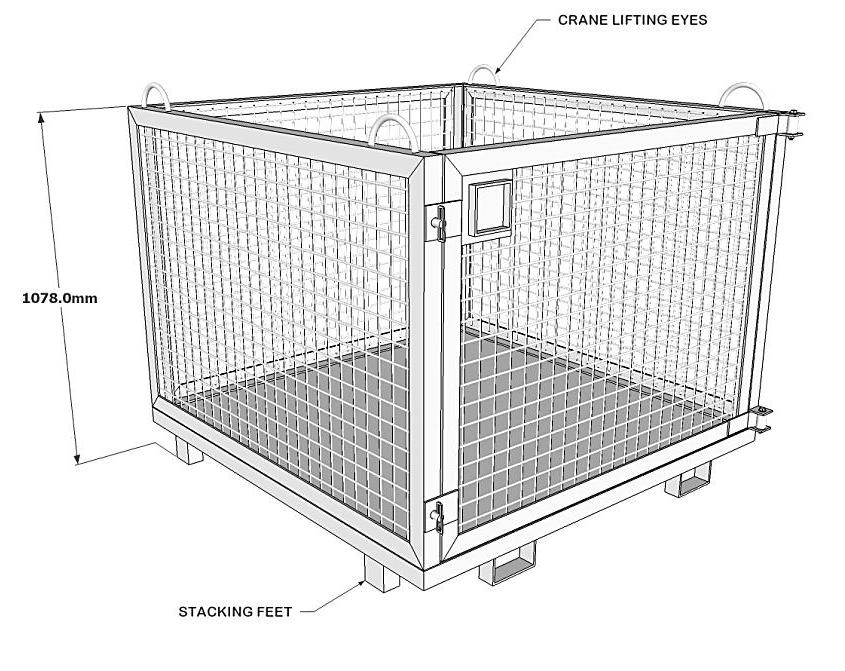

Crane lugs in the bottom corners allow the cage to be stacked – three high when empty, two high when full. These units are delivered flat packed to save on freight – allow up to 20 minutes assembly. Comes in hot dipped galvanised finish with an instruction manual and certification included.  Please note the FMC-19-060 is for cranes only.

Specifications:

  • Working Load Limit up to 1,000kg
  • Fork Pockets
  • Stackable
  • 4 crane lift hook points
  • Crane lifting chains not included
  • Fits a standard pallet.



Product Code WLL (kg) Unit Weight (kg) Gate opening (mm) External Size (mm) Fork Pocket Size (mm)
FMC-19-060 250 80 0 600 square N/A
FMC-19-100 1000 120 850 1000 square 170 x 70
FMC 19-125 1000 170 1250 13502 x 1153 high 170 x 70
