Air Hoist (SLVMX Series)

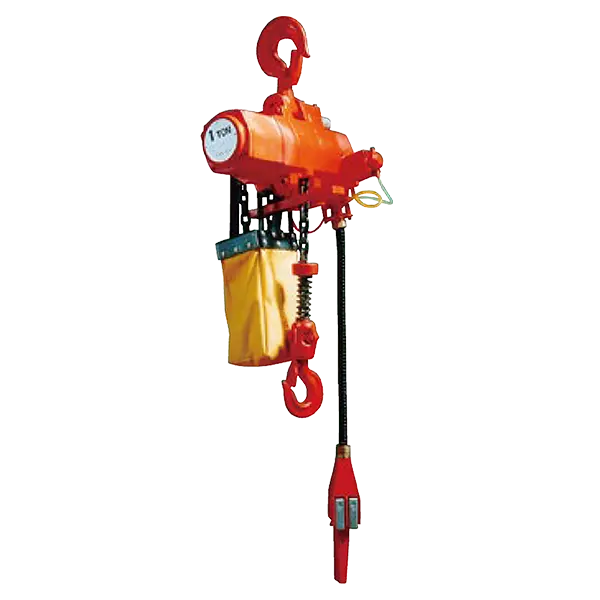

SLVMX Air Hoist with top hook

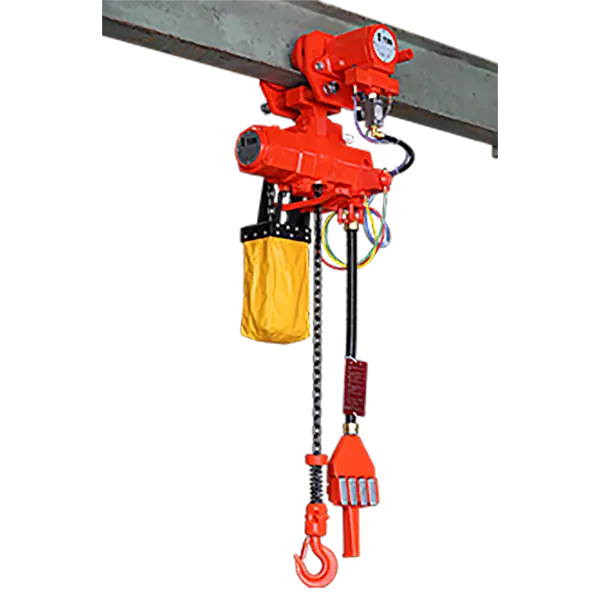

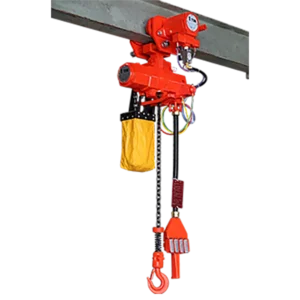

SLVMX Air Hoist with trolley
Air Hoist Schematic Diagram

Air Hoist (SLVMX Series)

Request Pricing

See specifications below.

SKU: SLVMX Categories: ,

Description

Air hoists (otherwise known as pneumatic hoists) are ideal lifting equipment for use in explosive applications or tough, humid or high-temperature conditions.

Our SLVMX series of San-Ei air hoists are available in capacities from 1,000kg up to 2,000kg.

Features:

  • High speed to low speed lift speed can be controlled to meet your works demand
  • Simple speed controls with the push button type, speed can be controlled by the touch applied to the button. With the string type, it is determined by how the string is pulled.
  • The newly introduced unique structure provides a smoother operation, easier handling and direct response
  • Light in weight compared with electrical chain blocks of the same capacity
  • High durability for use in high temperatures and humidity. These can be used in inflammable areas and explosion-prone areas
  • Untroubled by unfriendly working conditions – withstands dust, heat, humidity etc
  • Sound absorption.
  • Design Verified by SGS in New Zealand

Let us do the heavy lifting for you

Want to learn more about our range of San-Ei air hoists?

Contact us now and be a step closer to reaching a solution best fit for your application.

Please complete the form below and one of our team members will contact you shortly:










    Specifications:

    Model Weight (kg) Capacity (kg) Air Pressure (MPa) Lift Speed (m/min) Air Consumption (N-mᵌ) Chain Fall Chain Diameter (φmm) Lift (m)
    SLVMX100-6-LP 40

    1000

    0.6 5.0 1.6 1 7.1 6
    0.5 4.0 1.3
    0.4 3.0 1.0
    SLVMX200-6-LP 40

    2000

    0.6 2.5 1.6 2 7.1 6
    0.5 2.0 1.3
    0.4 1.5 1.0



    Trolley (OPTIONAL):

    Min. Radius of I-Beam Air Motor Travelling Speed I-Beam Size
    2000mm 10 ~ 20m/min (adjustable) 100, 125, 150mm

    Model: SLVMX100LP

    SLVMX100LP Air Hoist Dimensions Diagram

    * Measurements are in mm

    Model: SLVMX200LP

    SLVMX200LP Air Hoist Dimensions Diagram

    * Measurements are in mm
    Standard Description
    ACOP Design verified by SGS NZ Limited to meet the relevant requirements of the Approved Code of Practice for Cranes
    JIS B 8815 Designed, Manufactured and tested to this standard. (Equivalent to AS/NZS 3775)
