The VacuPowerlift is a versatile and modular lifting system that can be quickly adapted to suit a wide range of applications. At its core, the system includes a rotary head with an integrated check valve, a multi-layer telescopic lifting hose, and a suction block—together forming the main lifting unit.

The control unit is mounted directly on the suction cup and can be extended or connected with additional joints. These components not only support vacuum functionality but can also operate pneumatically through a built-in compressed air channel. Optional tilting and rotating features make handling even more efficient.

For specialised needs, custom gripping devices and tailored solutions can be developed to fit unique workflows. This helps improve production processes while reducing physical strain on workers through ergonomic design.

With a lifting capacity of up to 300 kg, the VacuPowerlift is used across many industries. It ensures safe, user-friendly operation while streamlining production tasks.

Areas of application:

• Cardboard boxes in shipping and logistics
• Barrels and containers in the chemical and pharmaceutical industries
• Board/sheet handling in wood and sheet metal processing
• Bricks and concrete components in the construction industry
• Loading and unloading of CNC processing machines
• Sacks in agriculture and bulk goods

Vacuum Generators

Vacuum Pumps	Silenced Pumps	Vacuum Blower
Dry-running vacuum pumps with 25-40 m³/h and mounted vacuum filters are available for the VPL100-VPL140 series.	The dry-running vacuum pumps are also available in a silenced version, which ensures a significant reduction in noise.	The robust and powerful side channel blowers are available in three sizes with suction volumes of 130-280 m³/h.



Additional Silencer	Sound Insulation Box	Vacuum Filter for Blowers
Additional silencers can be screwed onto the exhaust side of the vacuum blower, which reduce the noise level by approx. 3-4 dB(A).	The vacuum blowers can be installed in sound insulation boxes, which reduce the noise level by up to 10 bB(A).  Also for retrofitting.	Large, powerful, high-flow vacuum filter to protect vacuum blowers from contamination.

Lifting Units

Rotary Head	Lift Hose	Suction Block
All rotary heads have a high-performance bearing and an integrated check valve that ensures slow lowering, e.g. in the event of a power failure.	The telescopic lifting hoses are the heart of the hose lifter and are wrapped in a multi-layer that guarantees a long service life.	The robust and stable steel design ensures that the various gripping units are securely connected.



Pneumatics Module

With the integrated pneumatic feedthrough, pneumatic gripping devices and tilting devices can also be easily and safely supplied.

Control Housing and Grip Functions

Standard Control Box	Wireless Control Box	Pneumatics Control Box
With grab handle and control bar with intuitive, simple operation.	With an integrated push button for the optional radio remote control of the vacuum generator.	With integrated pneumatic manual valve for easy control of pneumatic movements.



Universal Control Box	Rigid Extension	Jointed Extension
Version with several control  options for a wide variety of  functions depending on the requirement.	For safe operation of large-format workpieces.	For an ergonomic both position when handling workpieces from high and low heights.



Rapid Ventilation	Balancer
Additional ventilation valve for faster ventilation and detachment with dense workpieces. Simple operation via hand lever.	For balancing the control box with long extensions or heavier add-on options.

Additional Functions

Quick-change Coupling	Continuous Rotary Unit	Manual Tilting Unit
Facilitates the replacement of suction cups for various applications during ongoing operation.	For layered, staggered restacking or simple turning of workpieces. Also optionally available with a locking module for 90° hold-open.	Simple and fast tilting device for tilting smaller workpieces up to approx. 35 kg.



Pneumatic Tilting Unit	Pneumatic Reversing Unit	Wall or Column Consoles
Device via one or two pneumatic cylinders for tilting workpieces up to 150 kg.	Compact and robust, pneumatic device for reversing workpieces by 180°. The height of the turning bracket is adjusted to the workpiece size.	For floor-free installation of the vacuum generator on walls or columns.



Balancing Valve

A compensating valve is available for the use of mechanical gripping devices, which takes over the automatic regulation of the vacuum.

Gripper Systems

Single suction pads	Single Suction pads	Bale Suction Pad
In round flat or bellows design for handling containers and barrels.	In a flat, rectangular design for small plates and workpieces with a solid surface.	With two flat suction pads with a special, reinforced rubber design.



Sack Suction Cups	Double Suction Pad	Quadruple Suction Cups
Made of plastic with two sizes for smaller and larger paper and plastic bags.	With round and rectangular suction cups, ideal for cardboard boxes.	With round and rectangular suction cups, ideal for large sheet materials.



Multi Canister Grabber	Canister grabber	Box Gripper
Pneumatically equipped clamping gripper for the simultaneous transfer of up to 20 canisters at once.	Simple hook gripper to grip under the canister tab with load balancing valve for vacuum control.	For pneumatic clamping and tilting of plastic boxes.



Barrel Gripper	Pallet Gripper	Magnetic Gripper
With pneumatic clamping and tilting device for emptying filled barrels.	With mechanical bottom grippers for handling pallets.	With pneumatic control for handling perforated sheets.



Flat Gripper	Combi Gripper	Block Pneumatic Gripper
With surface suction pad and integrated ejector.	With needle and magnetic gripper for handling insulating material and perforated sheets. Control via 2 pneumatic valves.	With clamping device for moving hollow blocks.



Coil Pneumatic Gripper	Suction Pads for Long Goods	Sextuple Suction Pad
With internal clamping jaws for moving coils.	With a reinforced longitudinal beam design for handling long goods up to 6,000 mm.	For handling large and thin-walled sheet material.

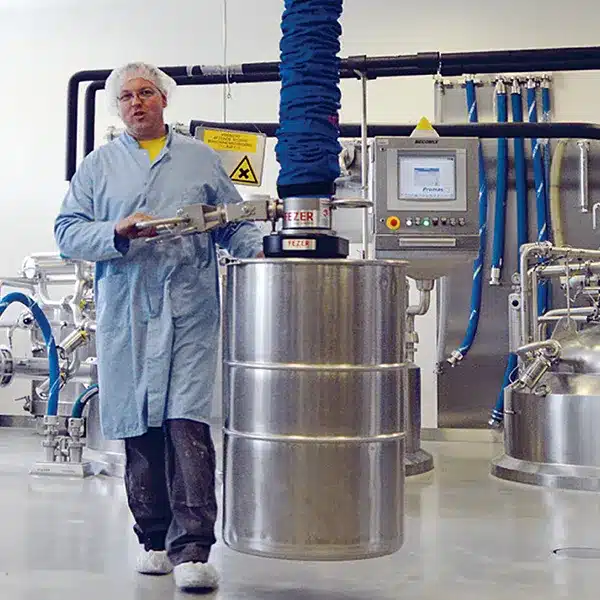

Stainless Steel and ATEX Version

The VacuPowerlift is also available in stainless steel and ATEX versions for the food, pharmaceutical and chemical industries. All components are manufactured and welded in V2A or, in the case of higher requirements, in V4A. For ATEX requirements, special blowers and electrically conductive device designs are available, which ensure safe operation in ATEX zones 21 and 22.

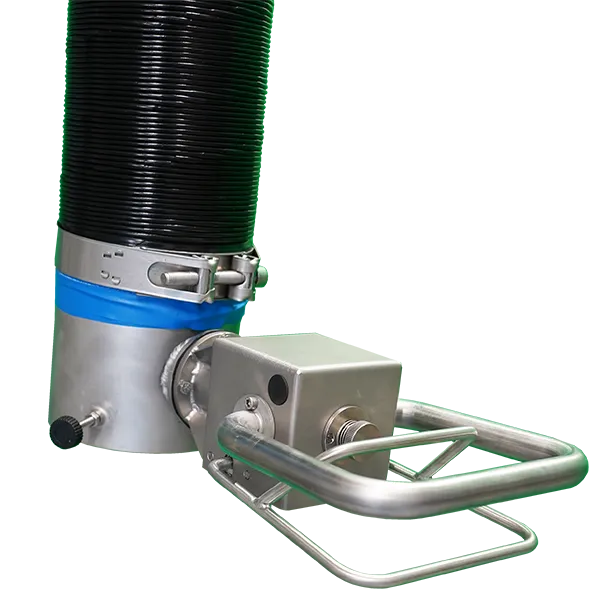

Lifting Unit	ATEX Lifting unit
Rotary head and suction head as well as the control box are made entirely of stainless steel. For ATEX requirements, the lifting hose has a special, antistatic coating and has an open, internal copper wire insert.	For ATEX requirements, the lifting hose is designed with a special, antistatic coating and also has an open, internal copper wire insert. All components are connected in an electrically conductive manner and thus guarantee the required equipotential bonding.



Suction Cups	Wireless Control Box
A large number of suction cups are available, all of which are made of stainless steel.	With an integrated push button for the optional radio remote control of the vacuum generator.



Ejector	ATEX Vacuum Filter
Pneumatic vacuum generator for EX zones 1 and 2.	Special stainless steel filter with internal filter cartridge and electrically conductive connection to the housing.
