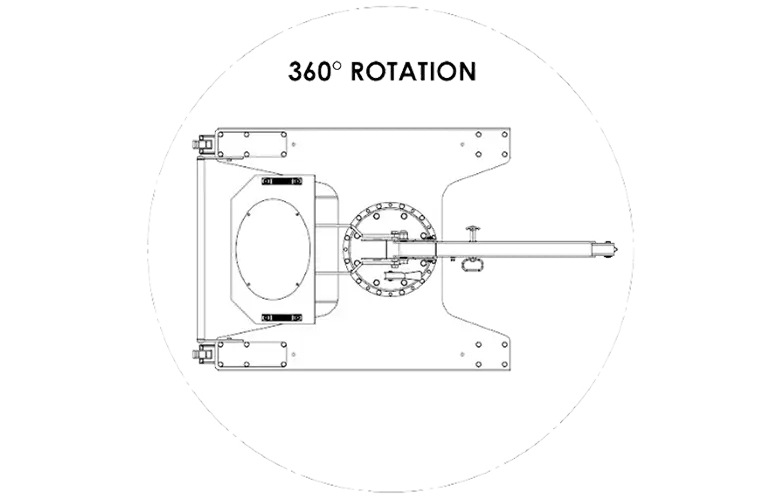

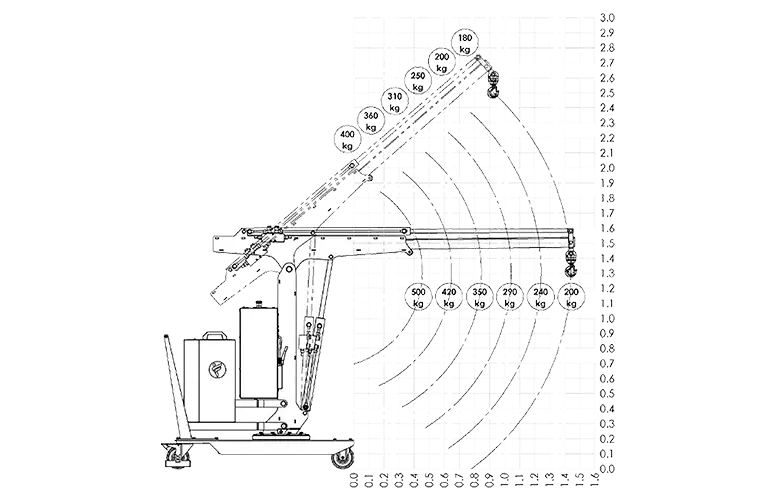

The ST-CB01B5SE-1000 is a compact, high-performance swivel crane designed for precision and versatility. With a load capacity of 500 kg and a 360° rotating arm that locks at 30° intervals, it provides exceptional operational flexibility. Its compact front footprint of just 980 mm makes it an ideal choice for applications where space is limited. The counterweight, equipped with two ergonomic handles, and the high-quality swivel bearing ensure smooth and controlled rotation.

The crane comes standard with durable nylon wheels, including two heavy-duty swivel casters with shock absorbers and parking brakes for maximum stability and safety under full load. The two fixed front wheels, mounted on high-precision bearings, ensure smooth and accurate maneuverability. The sturdy powder-coated steel frame features integrated forklift pockets, enabling safe and effortless transport over long distances.

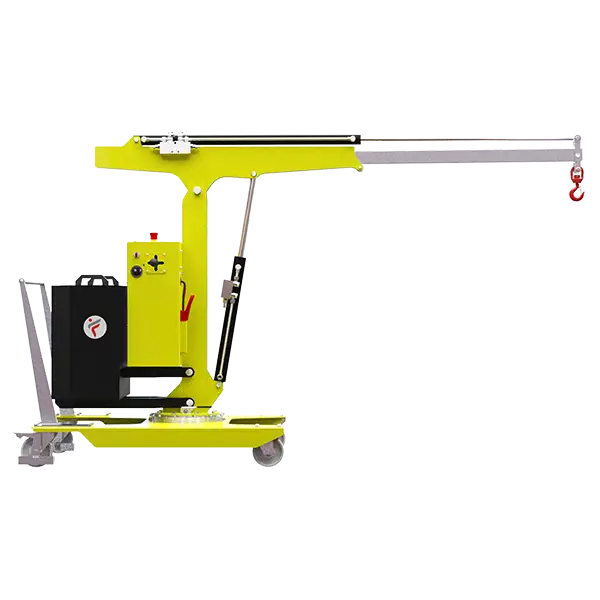

The ST-CB01B5SE-1000 is equipped with an electric telescopic boom featuring a 1000 mm stroke. The lifting and lowering of the arm, as well as the extension and retraction of the boom, are controlled via a lever-operated 4-function hydraulic distributor, providing smooth, precise movements.

Thanks to its advanced electric controls, the crane offers unparalleled accuracy in load positioning. The controlled descent function, combined with safety features and engine-off operation, ensures secure and efficient handling.

The hydraulic system includes a lock valve that prevents accidental load drop in the event of pipe failure, as well as a pressure relief valve to safeguard against overloading.

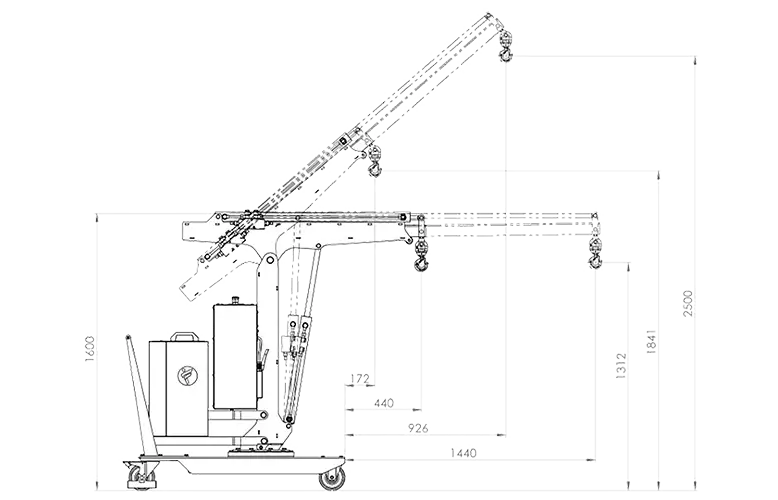

An optional boom extension is available, increasing the crane’s maximum reach to 1910 mm.

This crane is a cost-effective and highly adaptable solution for lifting and transporting loads across various applications, including machining centers, machine tools, assembly lines, and general goods handling. Its compact design allows for effortless maneuverability, even at full load, making it ideal for confined spaces. All components are manufactured in Italy, ensuring superior craftsmanship, reliability, and defect-free performance.

The crane is powered by a lead-acid battery and includes an external battery charger, with optional upgrades available to a maintenance-free AGM sealed battery or a lithium battery. A multifunction display provides real-time monitoring of battery charge level, voltage, and operating hours.

The ST-CB01B5SER-1000 is a preferred model for handling challenging placements, such as lifting loads onto 3D machines, lathes, over perimeter barriers, and through narrow openings. Its 360° pivoting capability makes it an ideal solution for applications where forklifts or larger lifting equipment cannot operate due to space constraints.
