Helical Spur Series – 4HS

4HS11MC
4HS11MC
Full Screen

Helical Spur Series – 4HS

Request Pricing

See Specifications below.

Description

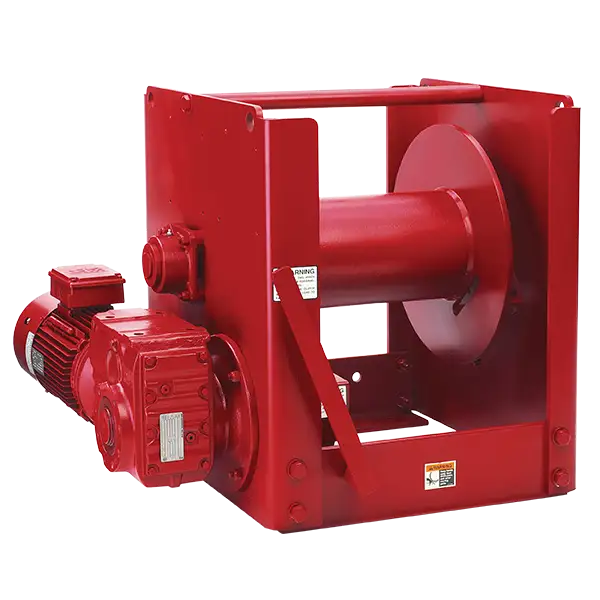

The 4HS series power winches feature a combination of helical/bevel or helical/parallel and spur gearing make these winches ideal for applications requiring long travel distances and faster line speeds.

QUICK FACTS

  • Capacity: 2270 – 11810kg
  • Flange style roller bearings
  • Welded steel drum
  • Extended steel drum shaft
  • Wire rope assemblies
  • Flange mounted motor
  • Load holding motor disc brake
  • Dual stage gearing
  • AMSE compliance
  • 2-Year Limited Warranty

FEATURES

Motor is a 230 or 460 volt, 3 phase motor, 60 cycle, IP 54*, TEFC severe duty, reversible, class B or F insulated, continuous duty brake motor. Standard motors comply with relevant standards including NEMA, MG1, ANSI, CSA, IEC1 and ABS.

Brake is spring set, electrically released for positive load control.

Gearing is comprised of a worm or helical/worm and spur gears, making winches well suited for applications requiring secure load control and accurate positioning. The heat-treated worm or helical/worm gear set provides improved durability and operates in an oil bath, enclosed in a high strength cast iron gear case, SAE class 30. Double-lip oil seals keep oil in and contaminants out. Large capacity bearings ensure long life. Speed reducers meet AGMA standards. Guarded, heat treated spur gearing provides secondary reduction. Grease zerks allow for easy lubrication.

Bearings are self-aligning with cast housing to maintain smooth drum rotation.

Drum has outside flange anchors, which allow for uniform winding and helps to extend life of wire rope. Anchors allow cable to be over wound or under wound from either side of the drum.

Captures both ends in a fabricated steel frame for optimal strength and security.

Sold separately per customer request.

Industry-leading two-year “Move It With Confidence” limited warranty.

Please complete the form below and one of our team members will contact you shortly:








    Code Load Rating Drum Capacity Line speed up to Clutch Availability Portable Enclosed Gearing High Ratio Gearing Suitable for Lifting Suitable for Back Driving Hydraulic Options Suitable for Harsh Environments
    4HS 11,790kg 365.8m 24mpm  •  •  •  •  •  •
    Standard Description
    ISO 9001:2015 Quality Management Systems
    2006/42/EC Machinery Directive
    ASME B30.7 Safety Standard for Winches
