Description

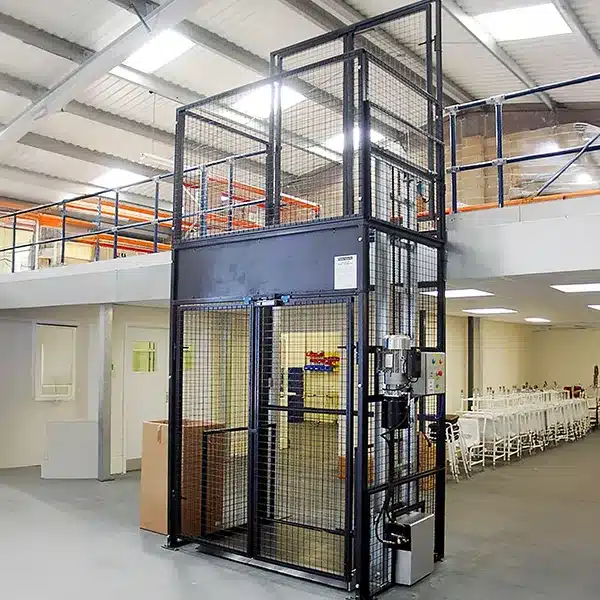

Goods lifts — also known as freight elevators, cargo or mezzanine lifts or dumb waiters — provide efficient vertical transport between floors.
Key Features
- Lift loads from 300 kg to 50,000 kg
- Travel height up to 18 m
- Platform size up to 10 m
- Lifting speed 4–6 m/min
- Custom entry/exit: single, double, or triple side access
- Built to EN81-31 / ISO9001 standards
Types of Goods Lifts
- Light Duty (<1,000 kg, small platform)
- Four-Post Lifts (1,000–10,000 kg, versatile solution)

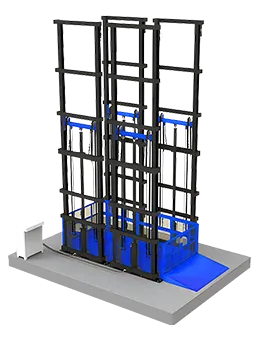

- Eight-Post Lifts (up to 50,000 kg, extra-large platforms)
- Custom Models: full cover with swing door, full cover with roller door, cabin with automatic door, galvanised and stainless steel goods lifts.
 |  |  |

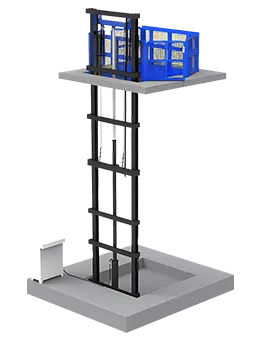

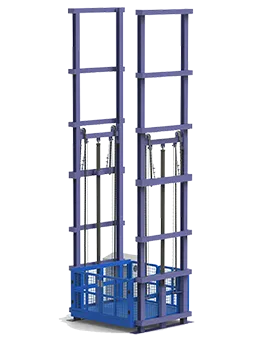

| Light Duty Load Goods Lift | Four Post Goods Lift | Eight Post Goods Lift |
 |  |  |

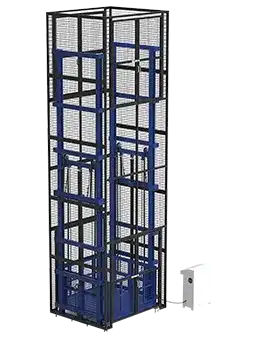

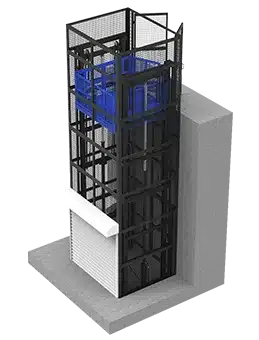

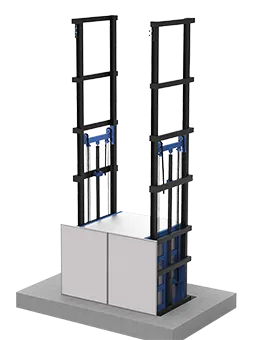

| Fully enclosed design with swing door | Fully enclosed design with roller door | Cabin with automatic door |
Functions and Safety
PLATFORM
- Guard-lock doors: The lift operates only when all doors are closed. If a door is open, it automatically stops.
- Interlocked gates: Electrical and mechanical interlocks prevent landing doors from opening while the lift is in motion, keeping the area below safe.
- Anti-slip platform: A steel, anti-skid surface provides secure footing and prevents cargo from sliding during movement.
- Protective railings: Standard platform railings are 1.2 m high, with an option to increase to 2.2 m, helping prevent goods from falling during operation.
CONTROL SYSTEMS
- Emergency stop: Instantly halts lift operation in case of an emergency.
- Final limit switch: Prevents the lift from over-traveling if the top floor limit switch fails.
- Voltage protection: Shields the system from power fluctuations to ensure safe, reliable performance.
- Key switch: Allows authorized personnel to cut off power and secure access to the lift.
